1005-01
[return to Table of Contents]

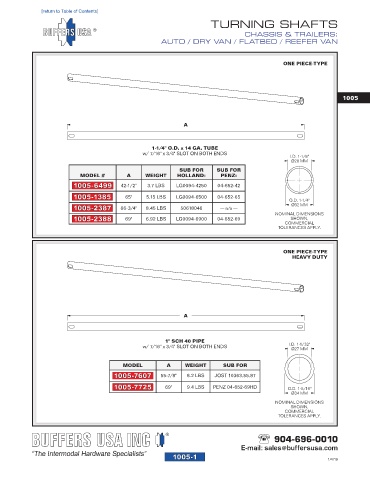

TURNING SHAFTS
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

ONE PIECE-TYPE

1005

A

1-1/4" O.D. x 14 GA. TUBE
w/ 7/16" x 3/4" SLOT ON BOTH ENDS
I.D. 1-1/8"
Ø28 MM
SUB FOR SUB FOR
MODEL # A WEIGHT HOLLAND: PENZ:
1005-6499 42-1/2" 3.7 LBS LG0094-4250 04-652-42

1005-1385 65" 5.15 LBS LG0094-6500 04-652-65
O.D. 1-1/4"
1005-2387 66-3/4" 8.45 LBS 50618046 — n/a — Ø32 MM
NOMINAL DIMENSIONS
1005-2388 69" 6.92 LBS LG0094-6900 04-652-69 SHOWN,
COMMERCIAL
TOLERANCES APPLY.

ONE PIECE-TYPE
HEAVY DUTY

A

1" SCH 40 PIPE
w/ 7/16" x 3/4" SLOT ON BOTH ENDS I.D. 1-1/32"
Ø27 MM

MODEL A WEIGHT SUB FOR
1005-7607 55-7/8" 8.2 LBS JOST 10363.55.87

1005-7725 69" 9.4 LBS PENZ 04-652-69HD O.D. 1-5/16"
Ø34 MM

NOMINAL DIMENSIONS
SHOWN,
COMMERCIAL
TOLERANCES APPLY.

904-696-0010
E-mail: sales@buffersusa.com
1005-1 1/4/19
