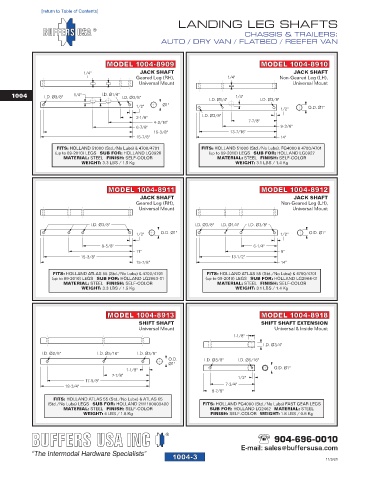

Page 28 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1004-03
[return to Table of Contents]
LANDING LEG SHAFTS
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

MODEL 1004-8909 MODEL 1004-8910
1/4" JACK SHAFT JACK SHAFT
Geared Leg (RH), 1/4" Non-Geared Leg (LH),
Universal Mount Universal Mount

1004 I.D. Ø3/8" 1/4" I.D. Ø1/4" I.D. Ø3/8" 1/4"
I.D. Ø1/4" I.D. Ø3/8"
1/2" Ø1" O.D. Ø1"
1/2"
I.D. Ø3/8"
2-1/8"
4-3/16" 7-7/8"
6-7/8" 9-3/8"
15-3/8" 13-7/16"
15-7/8" 14"
FITS: HOLLAND 51000 (Std./No Lube) & 4700/4701 FITS: HOLLAND 51000 (Std./No Lube), FG4000 & 4700/4701
(up to 09-2010) LEGS SUB FOR: HOLLAND LG0928 (up to 09-2010) LEGS SUB FOR: HOLLAND LG0927
MATERIAL: STEEL FINISH: SELF-COLOR MATERIAL: STEEL FINISH: SELF-COLOR
WEIGHT: 3.3 LBS / 1.5 Kg WEIGHT: 3.1 LBS / 1.4 Kg

MODEL 1004-8911 MODEL 1004-8912
JACK SHAFT JACK SHAFT
Geared Leg (RH), Non-Geared Leg (LH),
Universal Mount Universal Mount

I.D. Ø3/8" I.D. Ø3/8" I.D. Ø1/4" I.D. Ø3/8"
1/2" O.D. Ø1" 1/2" O.D. Ø1"
8-5/8" 6-1/4"
11" 9"
15-3/8" 13-1/2"
15-7/8" 14"
FITS: HOLLAND ATLAS 55 (Std./No Lube) & 4700/4701 FITS: HOLLAND ATLAS 55 (Std./No Lube) & 4700/4701
(up to 09-2010) LEGS SUB FOR: HOLLAND LG2963-01 (up to 09-2010) LEGS SUB FOR: HOLLAND LG2964-01
MATERIAL: STEEL FINISH: SELF-COLOR MATERIAL: STEEL FINISH: SELF-COLOR
WEIGHT: 3.3 LBS / 1.5 Kg WEIGHT: 3.1 LBS / 1.4 Kg

MODEL 1004-8913 MODEL 1004-8918
SHIFT SHAFT SHIFT SHAFT EXTENSION
Universal Mount Universal & Inside Mount
1-1/8"
I.D. Ø3/4"
I.D. Ø3/8" I.D. Ø5/16" I.D. Ø3/8"
O.D. I.D. Ø3/8" I.D. Ø5/16"
Ø1"
1-1/8" O.D. Ø1"
7-7/8" 1/2"
17-5/8"
18-3/4" 7-3/4"
8-7/8"
FITS: HOLLAND ATLAS 55 (Std./No Lube) & ATLAS 65
(Std./No Lube) LEGS SUB FOR: HOLLAND 2111100003400 FITS: HOLLAND FG4000 (Std./No Lube) FAST GEAR LEGS
MATERIAL: STEEL FINISH: SELF-COLOR SUB FOR: HOLLAND LG2462 MATERIAL: STEEL
WEIGHT: 4 LBS / 1.8 Kg FINISH: SELF-COLOR WEIGHT: 1.8 LBS / 0.8 Kg

904-696-0010
E-mail: sales@buffersusa.com
1004-3 11/3/21
