1006-02
[return to Table of Contents]

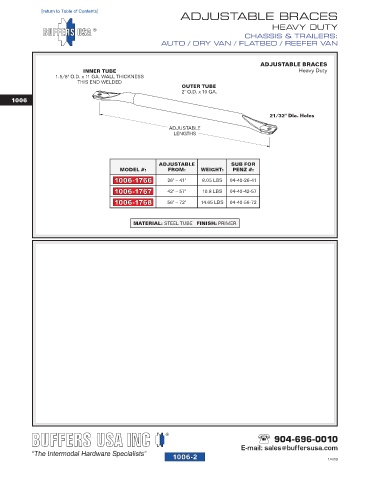

ADJUSTABLE BRACES
HEAVY DUTY
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN
ADJUSTABLE BRACES
INNER TUBE Heavy Duty
1-5/8" O.D. x 11 GA. WALL THICKNESS
THIS END WELDED
OUTER TUBE
2" O.D. x 10 GA.
1006
21/32" Dia. Holes
ADJUSTABLE
LENGTHS
ADJUSTABLE SUB FOR
MODEL #: FROM: WEIGHT: PENZ #:
1006-1766 26" – 41" 8.05 LBS 04-40-26-41
1006-1767 42" – 57" 10.8 LBS 04-40-42-57
1006-1768 56" – 72" 14.65 LBS 04-40-56-72
MATERIAL: STEEL TUBE FINISH: PRIMER
