1006-03
[return to Table of Contents]

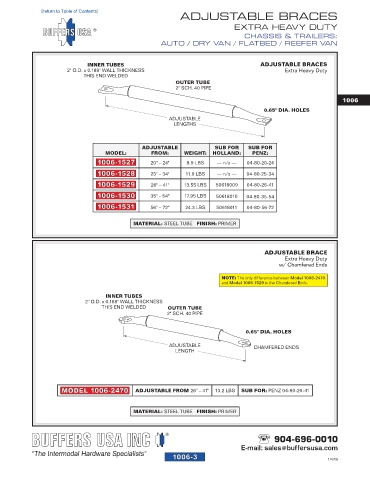

ADJUSTABLE BRACES
EXTRA HEAVY DUTY
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

INNER TUBES ADJUSTABLE BRACES
2" O.D. x 0.188" WALL THICKNESS Extra Heavy Duty
THIS END WELDED
OUTER TUBE
2" SCH. 40 PIPE
1006
0.65" DIA. HOLES
ADJUSTABLE
LENGTHS

ADJUSTABLE SUB FOR SUB FOR
MODEL: FROM: WEIGHT: HOLLAND: PENZ:
1006-1527 20" – 24" 8.9 LBS — n/a — 04-80-20-24

1006-1528 25" – 34" 11.9 LBS — n/a — 04-80-25-34
1006-1529 26" – 41" 13.55 LBS 50618009 04-80-26-41
1006-1530 35" – 54" 17.95 LBS 50618010 04-80-35-54

1006-1531 56" – 72" 24.3 LBS 50618011 04-80-56-72

MATERIAL: STEEL TUBE FINISH: PRIMER

ADJUSTABLE BRACE
Extra Heavy Duty
w/ Chamfered Ends

NOTE: The only difference between Model 1006-2470
and Model 1006-1529 is the Chamfered Ends.
INNER TUBES
2" O.D. x 0.188" WALL THICKNESS
THIS END WELDED OUTER TUBE
2" SCH. 40 PIPE

0.65" DIA. HOLES

ADJUSTABLE CHAMFERED ENDS
LENGTH

MODEL 1006-2470 ADJUSTABLE FROM 26" – 41" 13.2 LBS SUB FOR: PENZ 04-80-26-41

MATERIAL: STEEL TUBE FINISH: PRIMER

904-696-0010
E-mail: sales@buffersusa.com
1006-3 1/4/19
