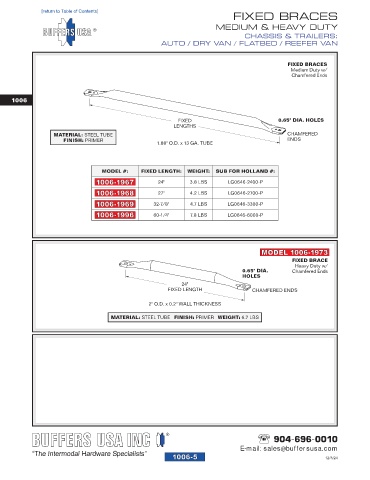

Page 36 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1006-05
[return to Table of Contents]
FIXED BRACES
MEDIUM & HEAVY DUTY
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

FIXED BRACES
Medium Duty w/
Chamfered Ends

FIXED 0.65" DIA. HOLES
1006 MATERIAL: STEEL TUBE LENGTHS CHAMFERED
FINISH: PRIMER
1.88" O.D. x 13 GA. TUBE ENDS

MODEL #: FIXED LENGTH: WEIGHT: SUB FOR HOLLAND #:
1006-1966 21" 3.41 LBS — n/a —
1006-1967 24" 3.8 LBS LG0646-2400-P

1006-1968 27" 4.2 LBS LG0646-2700-P
1006-1969 32-7/8" 4.7 LBS LG0646-3300-P
SPECIAL ORDER 1006-1970 42-1/4" 5.9 LBS LG0646-4200-P

SPECIAL ORDER 1006-1960 42-1/2" 6 LBS LG0646-4300-P
SPECIAL ORDER 1006-1971 48-1/4" 6.5 LBS LG0646-4800-P
1006-1961 48-1/2" 6.6 LBS — n/a —

SPECIAL ORDER 1006-1972 55-3/16" 7.5 LBS LG0646-5500-P
1006-1996 60-1/4" 7.8 LBS LG0646-6000-P

FIXED BRACE
Heavy Duty w/
0.65" DIA. Chamfered Ends
HOLES
24"
MATERIAL: STEEL TUBE FIXED LENGTH CHAMFERED ENDS
FINISH: PRIMER
2" O.D. x 0.2" WALL THICKNESS

SPECIAL ORDER MODEL 1006-1973 FIXED LENGTH 24" 6.7 LBS

FIXED BRACE
Heavy Duty

0.65" DIA.
HOLES
40"
FIXED LENGTH
MATERIAL: STEEL TUBE
FINISH: PRIMER
2" O.D. x 0.2" WALL THICKNESS
MODEL 1006-6496 FIXED LENGTH 40" 12.7 LBS SUB FOR: PENZ 04-20-40

904-696-0010
E-mail: sales@buffersusa.com
1006-5 1/4/19
