1004-05
[return to Table of Contents]

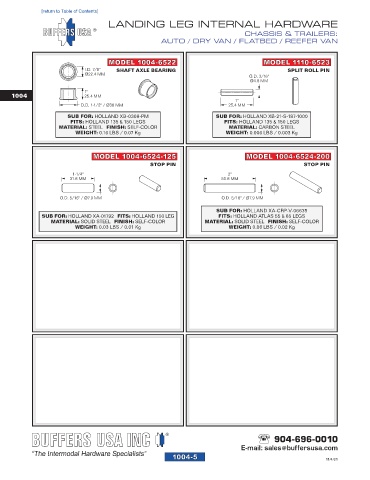

LANDING LEG INTERNAL HARDWARE
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

MODEL 1004-6522 MODEL 1110-6523
I.D. 7/8" SHAFT AXLE BEARING SPLIT ROLL PIN
Ø22.4 MM
O.D. 3/16"
Ø4.8 MM
1"
1004 25.4 MM
1"
O.D. 1-1/2" / Ø38 MM 25.4 MM
SUB FOR: HOLLAND XB-0308-PM SUB FOR: HOLLAND XB-21-S-187-1000
FITS: HOLLAND 135 & 150 LEGS FITS: HOLLAND 135 & 150 LEGS
MATERIAL: STEEL FINISH: SELF-COLOR MATERIAL: CARBON STEEL
WEIGHT: 0.16 LBS / 0.07 Kg WEIGHT: 0.006 LBS / 0.003 Kg

MODEL 1004-6524-125 MODEL 1004-6524-200
STOP PIN STOP PIN
1-1/4" 2"
31.8 MM 50.8 MM

O.D. 5/16" / Ø7.9 MM O.D. 5/16" / Ø7.9 MM

SUB FOR: HOLLAND XA-CRP-V-06635
SUB FOR: HOLLAND XA-01792 FITS: HOLLAND 150 LEG FITS: HOLLAND ATLAS 55 & 65 LEGS
MATERIAL: SOLID STEEL FINISH: SELF-COLOR MATERIAL: SOLID STEEL FINISH: SELF-COLOR
WEIGHT: 0.03 LBS / 0.01 Kg WEIGHT: 0.06 LBS / 0.02 Kg

904-696-0010
E-mail: sales@buffersusa.com
1004-5 11/4/21
