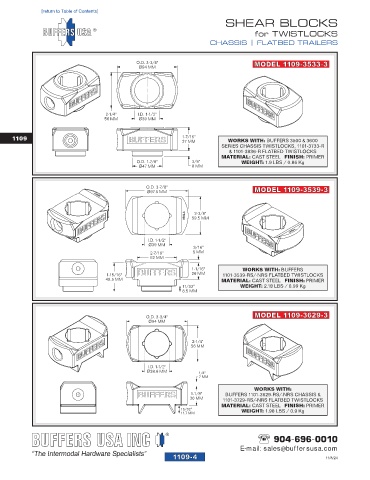

SHEAR BLOCKS
for TWISTLOCKS
CHASSIS | FLATBED TRAILERS

O.D. 3-3/4" MODEL 1109-3533-3
Ø94 MM

2-1/4" I.D. 1-1/2"
56 MM Ø39 MM

1-7/16"
1109 37 MM WORKS WITH: BUFFERS 3500 & 3600
SERIES CHASSIS TWISTLOCKS, 1101-3733-R
& 1101-3836-R FLATBED TWISTLOCKS
MATERIAL: CAST STEEL FINISH: PRIMER
O.D. 1-7/8" 3/8" WEIGHT: 1.9 LBS / 0.86 Kg
Ø47 MM 8 MM

O.D. 3-7/8" MODEL 1109-3539-3
Ø97.5 MM

2-3/8"
59.5 MM

I.D. 1-1/2"
Ø39 MM
3/16"
2-7/16" 5 MM
62 MM
1-1/16" WORKS WITH: BUFFERS
1-15/16" 26 MM 1101-3539-RS/-NRS FLATBED TWISTLOCKS
49.5 MM MATERIAL: CAST STEEL FINISH: PRIMER
11/32" WEIGHT: 2.18 LBS / 0.99 Kg
8.5 MM

O.D. 3-3/4" MODEL 1109-3629-3
Ø94 MM

2-1/4"
56 MM

I.D. 1-1/2"
Ø38.8 MM 1/4"
7 MM

WORKS WITH:
1-1/8" BUFFERS 1101-3629-RS/-NRS CHASSIS &
30 MM 1101-3729-RS/-NRS FLATBED TWISTLOCKS
MATERIAL: CAST STEEL FINISH: PRIMER
15/32" WEIGHT: 1.98 LBS / 0.9 Kg
11.7 MM
