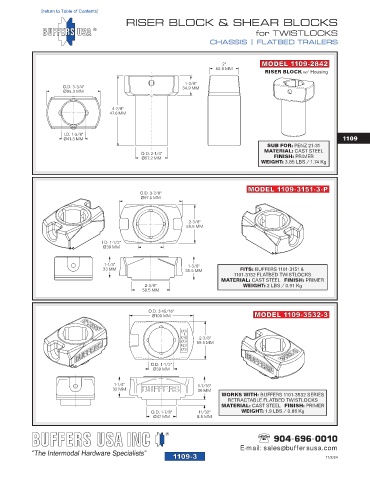

Page 261 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1109-03
[return to Table of Contents]
RISER BLOCK & SHEAR BLOCKS
for TWISTLOCKS
CHASSIS | FLATBED TRAILERS

2" MODEL 1109-2842
50.8 MM
RISER BLOCK w/ Housing
1-3/8"
O.D. 3-3/4" 34.9 MM
Ø95.3 MM

4-7/8"
47.6 MM

I.D. 1-5/8"
Ø41.3 MM 1109
SUB FOR: PENZ 21-31
MATERIAL: CAST STEEL
O.D. 2-1/4"
Ø57.2 MM FINISH: PRIMER
WEIGHT: 3.85 LBS / 1.74 Kg

MODEL 1109-3151-3-P
O.D. 3-7/8"
Ø97.5 MM

2-3/8"
59.5 MM

I.D. 1-1/2"
Ø39 MM

1-1/4" 1-3/8"
33 MM 36.5 MM FITS: BUFFERS 1101-3151 &
1101-3152 FLATBED TWISTLOCKS
MATERIAL: CAST STEEL FINISH: PRIMER
2-3/8" WEIGHT: 2 LBS / 0.91 Kg
59.5 MM

O.D. 3-15/16"
Ø100 MM MODEL 1109-3532-3

2-3/8"
59.5 MM

O.D. 1-1/2"
Ø39 MM

1-1/4" 1-7/16"
32 MM 36 MM
WORKS WITH: BUFFERS 1101-3532 SERIES
RETRACTABLE FLATBED TWISTLOCKS
MATERIAL: CAST STEEL FINISH: PRIMER
O.D. 1-7/8" 11/32" WEIGHT: 1.9 LBS / 0.86 Kg
Ø47 MM 8.5 MM
