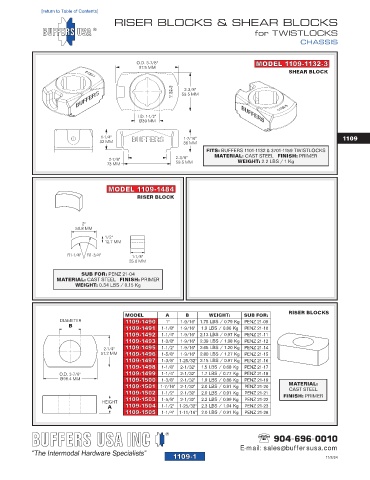

RISER BLOCKS & SHEAR BLOCKS
for TWISTLOCKS
CHASSIS

O.D. 3-7/8" MODEL 1109-1132-3
97.5 MM
SHEAR BLOCK

2-3/8"
59.5 MM

I.D. 1-1/2"
Ø39 MM

1-1/4" 1-7/16" 1109
32 MM 36 MM
FITS: BUFFERS 1101-1132 & 3701-1159 TWISTLOCKS
2-7/8" 2-3/8" MATERIAL: CAST STEEL FINISH: PRIMER
WEIGHT: 2.2 LBS / 1 Kg
73 MM 59.5 MM

MODEL 1109-1484
RISER BLOCK

2"
50.8 MM
1/2"
12.7 MM

R1-1/4" R1-3/4" 1-1/8"
25.6 MM

SUB FOR: PENZ 21-04
MATERIAL: CAST STEEL FINISH: PRIMER
WEIGHT: 0.34 LBS / 0.15 Kg

MODEL A B WEIGHT: SUB FOR: RISER BLOCKS
DIAMETER 1109-1490 1" 1- 9/16" 1.75 LBS / 0.79 Kg PENZ 21-09
B 1109-1491 1-1/8" 1- 9/16" 1.9 LBS / 0.86 Kg PENZ 21-10
1109-1492 1-1/4" 1- 9/16" 2.13 LBS / 0.97 Kg PENZ 21-11
1109-1493 1- 3/8" 1- 9/16" 2.39 LBS / 1.08 Kg PENZ 21-12
2-1/4" 1109-1495 1- 1/2" 1- 9/16" 2.65 LBS / 1.20 Kg PENZ 21-14
57.2 MM 1109-1496 1- 5/8" 1- 9/16" 2.80 LBS / 1.27 Kg PENZ 21-15
1109-1497 1- 3/8" 1- 25/32" 2.15 LBS / 0.97 Kg PENZ 21-16
1109-1498 1- 1/8" 2- 1/32" 1.5 LBS / 0.68 Kg PENZ 21-17
O.D. 3-7/8" 1109-1499 1- 1/4" 2- 1/32" 1.7 LBS / 0.77 Kg PENZ 21-18
Ø98.4 MM 1109-1500 1- 3/8" 2- 1/32" 1.9 LBS / 0.86 Kg PENZ 21-19
1109-1501 1- 7/16" 2- 1/32" 2.0 LBS / 0.91 Kg PENZ 21-20 MATERIAL:
1109-1502 1- 1/2" 2- 1/32" 2.0 LBS / 0.91 Kg PENZ 21-21 CAST STEEL
1109-1503 1- 5/8" 2- 1/32" 2.2 LBS / 0.99 Kg PENZ 21-22 FINISH: PRIMER
HEIGHT
A 1109-1504 1- 1/2" 1- 25/32" 2.3 LBS / 1.04 Kg PENZ 21-23
1109-1505 1- 1/4" 1- 11/16" 2.0 LBS / 0.91 Kg PENZ 21-28
