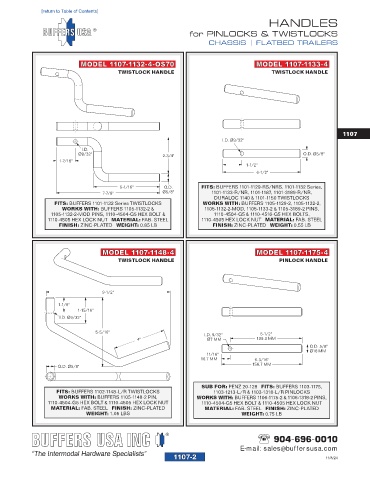

P. 203
1107-02
[return to Table of Contents]
HANDLES
for PINLOCKS & TWISTLOCKS
CHASSIS | FLATBED TRAILERS
MODEL 1107-1132-4-OS70 MODEL 1107-1133-4
TWISTLOCK HANDLE TWISTLOCK HANDLE
1107
I.D. Ø9/32"
I.D.
Ø9/32" 2-3/4" O.D. Ø5/8"
1-7/16"
1-1/2"
6-1/2"
5-1/16" O.D. FITS: BUFFERS 1101-1129-RS/NRS, 1101-1132 Series,
7-7/8" Ø5/8" 1101-1133-R/NR, 1101-1187, 1101-3189-R/NR,
DURALOC 1140 & 1101-1150 TWISTLOCKS
FITS: BUFFERS 1101-1132 Series TWISTLOCKS WORKS WITH: BUFFERS 1105-1129-2, 1105-1132-2,
WORKS WITH: BUFFERS 1105-1132-2 & 1105-1132-2-MOD, 1105-1133-2 & 1105-3189-2 PINS,
1105-1132-2-MOD PINS, 1110-4504-G5 HEX BOLT & 1110-4504-G5 & 1110-4516-G5 HEX BOLTS,
1110-4505 HEX LOCK NUT MATERIAL: FAB. STEEL 1110-4505 HEX LOCK NUT MATERIAL: FAB. STEEL
FINISH: ZINC-PLATED WEIGHT: 0.85 LB FINISH: ZINC-PLATED WEIGHT: 0.55 LB
MODEL 1107-1148-4 MODEL 1107-1175-4
TWISTLOCK HANDLE PINLOCK HANDLE
9-1/2"
1-1/8"
1-15/16"
I.D. Ø9/32"
5-5/16"
I.D. 9/32" 5-1/2"
4" Ø7 MM 139.3 MM
O.D. 5/8"
Ø16 MM
11/16"
16.7 MM 6-3/16"
O.D. Ø5/8" 156.7 MM
SUB FOR: PENZ 20-128 FITS: BUFFERS 1103-1175,
FITS: BUFFERS 1102-1148-L/R TWISTLOCKS 1103-1213-L/R & 1103-1318-L/R PINLOCKS
WORKS WITH: BUFFERS 1105-1148-2 PIN, WORKS WITH: BUFFERS 1106-1175-2 & 1106-1318-2 PINS,
1110-4504-G5 HEX BOLT & 1110-4505 HEX LOCK NUT 1110-4504-G5 HEX BOLT & 1110-4505 HEX LOCK NUT
MATERIAL: FAB. STEEL FINISH: ZINC-PLATED MATERIAL: FAB. STEEL FINISH: ZINC-PLATED
WEIGHT: 1.05 LBS WEIGHT: 0.75 LB
904-696-0010
E-mail: sales@buffersusa.com
1107-2 11/8/24
