1106-14
[return to Table of Contents]

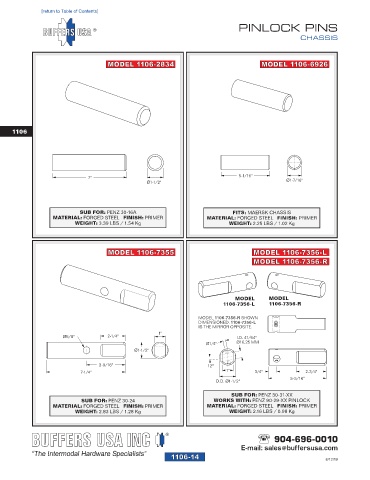

PINLOCK PINS

CHASSIS

MODEL 1106-2834 MODEL 1106-6926

1106

7" 5-1/16"
Ø1-1/2" Ø1-7/16"

SUB FOR: PENZ 30-16A FITS: MAERSK CHASSIS
MATERIAL: FORGED STEEL FINISH: PRIMER MATERIAL: FORGED STEEL FINISH: PRIMER
WEIGHT: 3.39 LBS / 1.54 Kg WEIGHT: 2.25 LBS / 1.02 Kg

MODEL 1106-7355 MODEL 1106-7356-L
MODEL 1106-7356-R

MODEL MODEL
1106-7356-L 1106-7356-R

MODEL 1106-7356-R SHOWN
DIMENSIONED. 1106-7356-L
IS THE MIRROR OPPOSITE.
1"
Ø5/8" 2-1/4" I.D. 41/64"
Ø1/4" Ø16.25 MM
Ø1-1/2"

3-9/16" 12º
7-1/4" 1" 3/4" 2-3/4"
5-5/16"
O.D. Ø1-1/2"
SUB FOR: PENZ 30-31-XX
SUB FOR: PENZ 30-24 WORKS WITH: PENZ 90-29-XX PINLOCK
MATERIAL: FORGED STEEL FINISH: PRIMER MATERIAL: FORGED STEEL FINISH: PRIMER
WEIGHT: 2.83 LBS / 1.28 Kg WEIGHT: 2.16 LBS / 0.98 Kg

904-696-0010
E-mail: sales@buffersusa.com
1106-14 8/12/19
