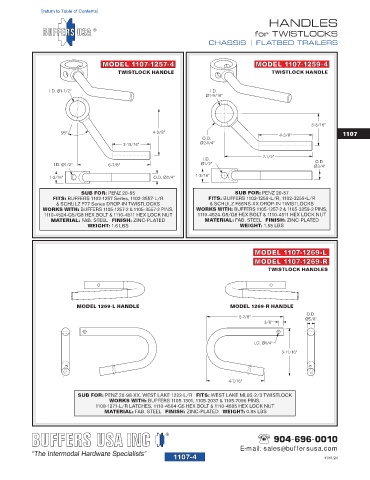

Page 205 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1107-04
[return to Table of Contents]
HANDLES
for TWISTLOCKS
CHASSIS | FLATBED TRAILERS

MODEL 1107-1257-4 MODEL 1107-1259-4
TWISTLOCK HANDLE TWISTLOCK HANDLE

I.D. Ø1-1/2" I.D.
Ø1-9/16"

3-3/16"
55º 4-3/8" 4-3/8" 1107
O.D.
3-13/16" Ø2-1/4"

7-1/2"
I.D. O.D.
I.D. Ø1/2" 6-7/8" Ø1/2" Ø3/4"
1-3/16" O.D. Ø3/4" 1-3/16"

SUB FOR: PENZ 20-65 SUB FOR: PENZ 20-57
FITS: BUFFERS 1102-1257 Series, 1102-3557-L/R FITS: BUFFERS 1102-1259-L/R, 1102-3259-L/R
& SCHULZ F77 Series DROP-IN TWISTLOCKS & SCHULZ F66NS-XX DROP-IN TWISTLOCKS
WORKS WITH: BUFFERS 1105-1257-2 & 1105-3557-2 PINS, WORKS WITH: BUFFERS 1105-1257-2 & 1105-3259-2 PINS,
1110-4524-G5/G8 HEX BOLT & 1110-4511 HEX LOCK NUT 1110-4524-G5/G8 HEX BOLT & 1110-4511 HEX LOCK NUT
MATERIAL: FAB. STEEL FINISH: ZINC-PLATED MATERIAL: FAB. STEEL FINISH: ZINC-PLATED
WEIGHT: 1.6 LBS WEIGHT: 1.55 LBS

MODEL 1107-1269-L
MODEL 1107-1269-R
TWISTLOCK HANDLES

MODEL 1269-L HANDLE MODEL 1269-R HANDLE
O.D.
5-7/8" Ø5/8"
3/8"

I.D. Ø1/4"
3-11/16"

4-7/16"

SUB FOR: PENZ 20-98-XX, WEST LAKE 1222-L/R FITS: WEST LAKE ML85-2/3 TWISTLOCK
WORKS WITH: BUFFERS 1105-1301, 1105-2037 & 1105-7096 PINS,
1108-1271-L/R LATCHES, 1110-4504-G5 HEX BOLT & 1110-4505 HEX LOCK NUT
MATERIAL: FAB. STEEL FINISH: ZINC-PLATED WEIGHT: 0.85 LBS

904-696-0010
E-mail: sales@buffersusa.com
1107-4 11/11/24
