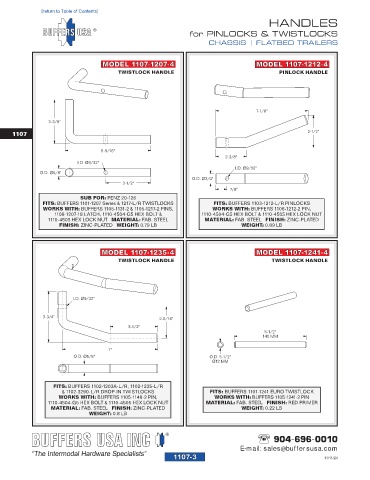

Page 204 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1107-03
[return to Table of Contents]
HANDLES
for PINLOCKS & TWISTLOCKS
CHASSIS | FLATBED TRAILERS

MODEL 1107-1207-4 MODEL 1107-1212-4
TWISTLOCK HANDLE PINLOCK HANDLE

7-1/8"
3-3/8"

1107 2-1/2"

6-9/16"
2-3/8"
I.D. Ø9/32"
I.D. Ø9/32"
O.D. Ø5/8"
O.D. Ø3/4"
3-1/2"
7/8"
SUB FOR: PENZ 20-126
FITS: BUFFERS 1101-1207 Series & 1217-L/R TWISTLOCKS FITS: BUFFERS 1103-1212-L/R PINLOCKS
WORKS WITH: BUFFERS 1105-1131-2 & 1105-1217-2 PINS, WORKS WITH: BUFFERS 1106-1212-2 PIN,
1108-1207-18 LATCH, 1110-4504-G5 HEX BOLT & 1110-4504-G5 HEX BOLT & 1110-4505 HEX LOCK NUT
1110-4505 HEX LOCK NUT MATERIAL: FAB. STEEL MATERIAL: FAB. STEEL FINISH: ZINC-PLATED
FINISH: ZINC-PLATED WEIGHT: 0.79 LB WEIGHT: 0.89 LB

MODEL 1107-1235-4 MODEL 1107-1241-4
TWISTLOCK HANDLE TWISTLOCK HANDLE

I.D. Ø9/32"

3-3/4" 2-5/16"
3-1/2"
5-1/2"
140 MM

7"
O.D. Ø5/8" O.D. 5-1/2"
Ø12 MM

FITS: BUFFERS 1102-1203A-L/R, 1102-1235-L/R
& 1102-3290-L/R DROP-IN TWISTLOCKS FITS: BUFFERS 1101-1241 EURO TWISTLOCK
WORKS WITH: BUFFERS 1105-1148-2 PIN, WORKS WITH: BUFFERS 1105-1241-2 PIN
1110-4504-G5 HEX BOLT & 1110-4505 HEX LOCK NUT MATERIAL: FAB. STEEL FINISH: RED PRIMER
MATERIAL: FAB. STEEL FINISH: ZINC-PLATED WEIGHT: 0.22 LB
WEIGHT: 0.8 LB

904-696-0010
E-mail: sales@buffersusa.com
1107-3 11/11/24
