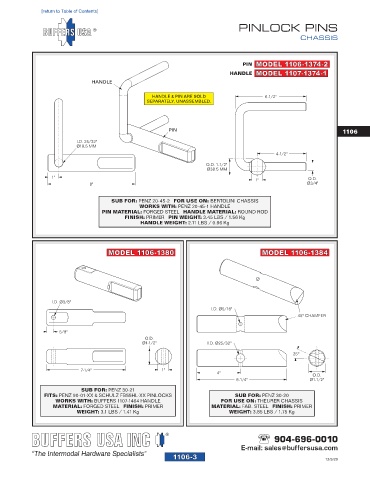

PINLOCK PINS

CHASSIS

PIN MODEL 1106-1374-2
HANDLE MODEL 1107-1374-1
HANDLE

HANDLE & PIN ARE SOLD 6-1/2"
SEPARATELY, UNASSEMBLED.

PIN 1106

I.D. 25/32"
Ø19.5 MM
4-1/2"
O.D. 1-1/2"
Ø38.5 MM
1" 1" O.D.
8" Ø3/4"

SUB FOR: PENZ 20-45-2 FOR USE ON: BERTOLINI CHASSIS
WORKS WITH: PENZ 20-45-1 HANDLE
PIN MATERIAL: FORGED STEEL HANDLE MATERIAL: ROUND ROD
FINISH: PRIMER PIN WEIGHT: 3.45 LBS / 1.56 Kg
HANDLE WEIGHT: 2.11 LBS / 0.96 Kg

MODEL 1106-1380 MODEL 1106-1384

I.D. Ø3/8"
I.D. Ø5/16"
45º CHAMFER

5/8"
O.D.
Ø1-1/2" I.D. Ø25/32"
25º

7-1/4" 1"
4" O.D.
8-1/4" Ø1-1/2"
SUB FOR: PENZ 30-21
FITS: PENZ 90-01-XX & SCHULZ FB55HL-XX PINLOCKS SUB FOR: PENZ 30-20
WORKS WITH: BUFFERS 1107-1464 HANDLE FOR USE ON: THEURER CHASSIS
MATERIAL: FORGED STEEL FINISH: PRIMER MATERIAL: FAB. STEEL FINISH: PRIMER
WEIGHT: 3.1 LBS / 1.41 Kg WEIGHT: 3.85 LBS / 1.75 Kg
