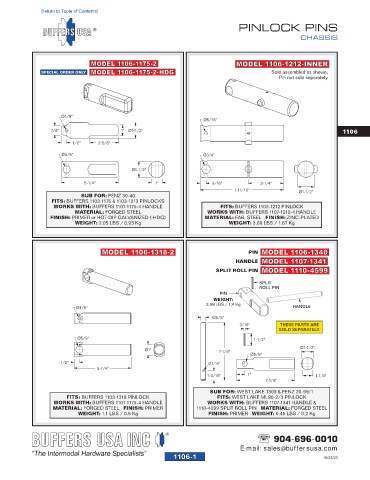

PINLOCK PINS

CHASSIS

MODEL 1106-1175-2 MODEL 1106-1212-INNER
SPECIAL ORDER ONLY MODEL 1106-1175-2-HDG Sold assembled as shown;
Pin not sold separately

Ø1/8"
Ø5/16"
7/8" 1" Ø1-1/2" 1106

1/2" 2-5/8"
Ø5/8" Ø3/4"

Ø1-1/2"

5-1/4" 1" 9/16" 3-1/4"
7-11/16" Ø1-1/2"
SUB FOR: PENZ 30-40
FITS: BUFFERS 1103-1175 & 1103-1213 PINLOCKS
WORKS WITH: BUFFERS 1107-1175-4 HANDLE FITS: BUFFERS 1103-1212 PINLOCK
MATERIAL: FORGED STEEL WORKS WITH: BUFFERS 1107-1212-4 HANDLE
FINISH: PRIMER or HOT-DIP GALVANIZED (-HDG) MATERIAL: FAB. STEEL FINISH: ZINC-PLATED
WEIGHT: 2.05 LBS / 0.93 Kg WEIGHT: 3.68 LBS / 1.67 Kg

MODEL 1106-1318-2 PIN MODEL 1106-1340
HANDLE MODEL 1107-1341
SPLIT ROLL PIN MODEL 1110-4599

SPLIT
ROLL PIN
PIN
WEIGHT:
3.08 LBS / 1.4 Kg
Ø1/8" HANDLE
Ø5/8"
3/16" THESE PARTS ARE
SOLD SEPARATELY.
Ø5/8" 1-1/2"
Ø1-1/2"
Ø1" 7-1/8"
Ø5/8"
1/2" Ø3/16"
5-1/4"
1-3/16" 1" 1-1/4"
7-1/8"
SUB FOR: WEST LAKE 1305 & PENZ 20-99/1
FITS: BUFFERS 1103-1318 PINLOCK FITS: WEST LAKE ML90-2/3 PINLOCK
WORKS WITH: BUFFERS 1107-1175-4 HANDLE WORKS WITH: BUFFERS 1107-1341 HANDLE &
MATERIAL: FORGED STEEL FINISH: PRIMER 1110-4599 SPLIT ROLL PIN MATERIAL: FORGED STEEL
WEIGHT: 1.1 LBS / 0.5 Kg FINISH: PRIMER WEIGHT: 0.45 LBS / 0.2 Kg
