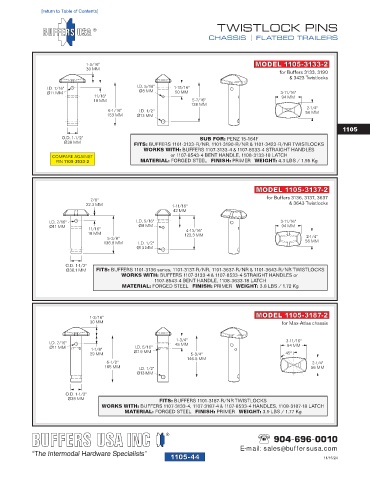

Page 175 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1105-44
[return to Table of Contents]
TWISTLOCK PINS

CHASSIS | FLATBED TRAILERS

1-3/16" MODEL 1105-3133-2
30 MM
for Buffers 3133, 3190
& 3423 Twistlocks
I.D. 7/16" I.D. 5/16" 1-15/16"
Ø8 MM
Ø11 MM 50 MM 3-11/16"
11/16" 94 MM
18 MM 5-7/16"
138 MM
2-1/4"
6-1/16" I.D. 1/2" 56 MM
153 MM Ø13 MM
1105
O.D. 1-1/2" SUB FOR: PENZ 15-164F
Ø38 MM FITS: BUFFERS 1101-3133-R/NR, 1101-3190-R/NR & 1101-3423-R/NR TWISTLOCKS
WORKS WITH: BUFFERS 1107-3133-4 & 1107-8533-4 STRAIGHT HANDLES
COMPARE AGAINST or 1107-8543-4 BENT HANDLE, 1108-3133-18 LATCH
PIN 1105-3533-2 MATERIAL: FORGED STEEL FINISH: PRIMER WEIGHT: 4.3 LBS / 1.95 Kg

MODEL 1105-3137-2
for Buffers 3136, 3137, 3637
7/8"
22.3 MM 1-11/16" & 3643 Twistlocks
42 MM
I.D. 7/16" I.D. 5/16" 3-11/16"
Ø11 MM Ø8 MM 94 MM
11/16" 4-13/16"
18 MM 122.3 MM
5-3/8" 2-1/4"
136.8 MM I.D. 1/2" 56 MM
Ø13 MM

O.D. 1-1/2"
Ø38.1 MM FITS: BUFFERS 1101-3136 series, 1101-3137-R/NR, 1101-3637-R/NR & 1101-3643-R/NR TWISTLOCKS
WORKS WITH: BUFFERS 1107-3133-4 & 1107-8533-4 STRAIGHT HANDLES or
1107-8543-4 BENT HANDLE, 1108-3633-18 LATCH
MATERIAL: FORGED STEEL FINISH: PRIMER WEIGHT: 3.8 LBS / 1.72 Kg

MODEL 1105-3187-2
1-3/16"
30 MM for Max-Atlas chassis

1-3/4" 3-11/16"
I.D. 7/16" 45 MM 94 MM
Ø11 MM 1-1/8" I.D. 5/16"
29 MM Ø7.9 MM 5-3/4" 45º
146.5 MM
6-1/2" 2-1/4"
165 MM I.D. 1/2" 56 MM
Ø13 MM

O.D. 1-1/2"
Ø38 MM FITS: BUFFERS 1101-3187-R/NR TWISTLOCKS
WORKS WITH: BUFFERS 1107-3133-4, 1107-3187-4 & 1107-8533-4 HANDLES, 1108-3187-18 LATCH
MATERIAL: FORGED STEEL FINISH: PRIMER WEIGHT: 3.9 LBS / 1.77 Kg
