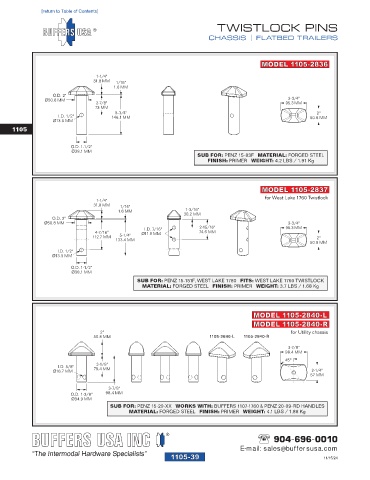

Page 170 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1105-39
[return to Table of Contents]
TWISTLOCK PINS

CHASSIS | FLATBED TRAILERS

MODEL 1105-2836

1-1/4"
31.8 MM 1/16"
1.6 MM
O.D. 2"
Ø50.8 MM 3-3/4"
2-7/8" 95.3 MM
73 MM
5-3/4" 2"
I.D. 1/2" 146.1 MM 50.8 MM
Ø13.5 MM
1105

O.D. 1-1/2"
Ø38.1 MM
SUB FOR: PENZ 15-83F MATERIAL: FORGED STEEL
FINISH: PRIMER WEIGHT: 4.2 LBS / 1.91 Kg

MODEL 1105-2837
for West Lake 1760 Twistlock
1-1/4"
31.8 MM 1/16"
1.6 MM 1-3/16"
30.2 MM
O.D. 2"
Ø50.8 MM 3-3/4"
I.D. 7/16" 2-15/16" 95.3 MM
4-7/16" Ø11.9 MM 74.6 MM
112.7 MM 5-1/4" 2"
133.4 MM
50.8 MM
I.D. 1/2"
Ø13.5 MM
O.D. 1-1/2"
Ø38.1 MM
SUB FOR: PENZ 15-151F, WEST LAKE 1780 FITS: WEST LAKE 1760 TWISTLOCK
MATERIAL: FORGED STEEL FINISH: PRIMER WEIGHT: 3.7 LBS / 1.68 Kg

MODEL 1105-2840-L
MODEL 1105-2840-R
2" for Utility chassis
50.8 MM 1105-2840-L 1105-2840-R
3-7/8"
98.4 MM
45º
3-1/8"
I.D. 5/8"
Ø16.7 MM 79.4 MM 2-1/4"
57 MM
3-7/8"
O.D. 1-3/8" 98.4 MM
Ø34.9 MM
SUB FOR: PENZ 15-29-XX WORKS WITH: BUFFERS 1107-1760 & PENZ 20-09-RD HANDLES
MATERIAL: FORGED STEEL FINISH: PRIMER WEIGHT: 4.1 LBS / 1.86 Kg
