1105-40
[return to Table of Contents]

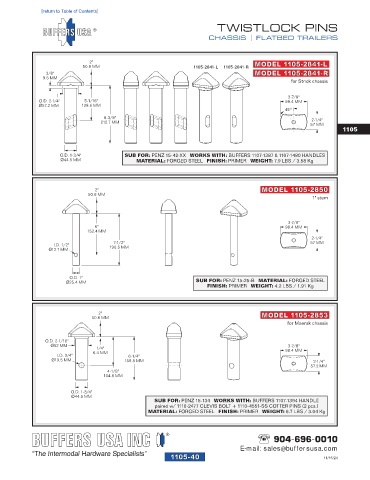

TWISTLOCK PINS

CHASSIS | FLATBED TRAILERS

2" MODEL 1105-2841-L
50.8 MM 1105-2841-L 1105-2841-R
3/8" MODEL 1105-2841-R
9.5 MM
for Strick chassis

3-7/8"
O.D. 2-1/4" 5-1/16" 98.4 MM
Ø57.2 MM 128.6 MM
45º
8-3/8"
212.7 MM 2-1/4"
57 MM
1105

O.D. 1-3/4" SUB FOR: PENZ 15-42-XX WORKS WITH: BUFFERS 1107-1387 & 1107-1480 HANDLES
Ø44.5 MM MATERIAL: FORGED STEEL FINISH: PRIMER WEIGHT: 7.9 LBS / 3.58 Kg

2" MODEL 1105-2850
50.8 MM
1" stem

3-7/8"
6" 98.4 MM
152.4 MM
2-1/4"
7-1/2" 57 MM
I.D. 1/2"
Ø12.7 MM 190.5 MM

O.D. 1"
Ø25.4 MM SUB FOR: PENZ 15-25-B MATERIAL: FORGED STEEL
FINISH: PRIMER WEIGHT: 4.2 LBS / 1.91 Kg

2" MODEL 1105-2853
50.8 MM
for Maersk chassis

O.D. 2-1/16"
Ø52 MM 3-7/8"
1/4"
6.4 MM 98.4 MM
I.D. 3/4" 6-1/4"
Ø19.5 MM 158.8 MM 2-1/4"
57.2 MM
4-1/8"
104.8 MM
O.D. 1-3/4"
Ø44.5 MM
SUB FOR: PENZ 15-134 WORKS WITH: BUFFERS 1107-1394 HANDLE
paired w/ 1110-2477 CLEVIS BOLT + 1110-4551-SS COTTER PINS (2 pcs.)
MATERIAL: FORGED STEEL FINISH: PRIMER WEIGHT: 6.7 LBS / 3.04 Kg

904-696-0010
E-mail: sales@buffersusa.com
1105-40 11/15/24
