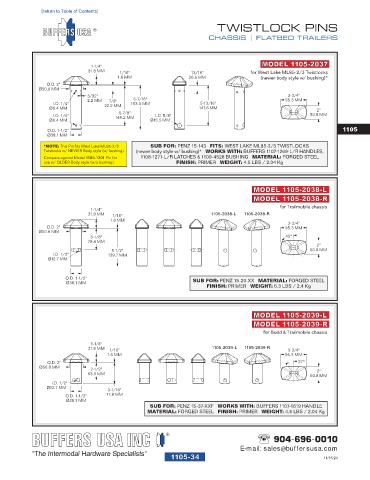

Page 165 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1105-34
[return to Table of Contents]
TWISTLOCK PINS

CHASSIS | FLATBED TRAILERS

MODEL 1105-2037
1-1/4"
31.8 MM 1/16" 13/16" for West Lake ML85-2/3 Twistlocks
1.6 MM 20.6 MM (newer body style w/ bushing)*
O.D. 2"
Ø50.8 MM
3/32" 3-3/4"
2.2 MM 7/8" 6-7/16" 95.3 MM
I.D. 1/4" 163.5 MM 5-13/16"
Ø6.4 MM 22.2 MM 147.6 MM 2"
5-7/8"
I.D. 1/4" 149.2 MM I.D. 5/8" 50.8 MM
Ø6.4 MM Ø15.5 MM
O.D. 1-1/2" 1105
Ø38.1 MM

*NOTE: This Pin fits West Lake ML85-2/3 SUB FOR: PENZ 15-143 FITS: WEST LAKE ML85-2/3 TWISTLOCKS
Twistlocks w/ NEWER Body style (w/ bushing). (newer body style w/ bushing)* WORKS WITH: BUFFERS 1107-1269-L/R HANDLES,
Compare against Model 1105-1301 Pin for 1108-1271-L/R LATCHES & 1109-4528 BUSHING MATERIAL: FORGED STEEL
use w/ OLDER Body style (w/o bushing). FINISH: PRIMER WEIGHT: 4.5 LBS / 2.04 Kg

MODEL 1105-2038-L
MODEL 1105-2038-R
for Trailmobile chassis
1-1/4"
31.8 MM 1/16" 1105-2038-L 1105-2038-R
1.6 MM 3-3/4"
O.D. 2" 95.3 MM
Ø50.8 MM
3-1/8" 45º
79.4 MM
2"
5-1/2" 50.8 MM
I.D. 1/2" 139.7 MM
Ø12.7 MM

O.D. 1-1/2" SUB FOR: PENZ 15-20-XX MATERIAL: FORGED STEEL
Ø38.1 MM
FINISH: PRIMER WEIGHT: 5.3 LBS / 2.4 Kg

MODEL 1105-2039-L
MODEL 1105-2039-R
for Budd & Trailmobile chassis
1-1/4"
31.8 MM 1/16" 1105-2039-L 1105-2039-R 3-3/4"
1.6 MM 95.3 MM
O.D. 2" 27º
Ø50.8 MM 2-1/2"
2"
63.5 MM 50.8 MM
I.D. 1/2"
Ø12.7 MM 3-1/16"
O.D. 1-1/2" 77.8 MM
Ø38.1 MM
SUB FOR: PENZ 15-37-XXF WORKS WITH: BUFFERS 1107-1619 HANDLE
MATERIAL: FORGED STEEL FINISH: PRIMER WEIGHT: 4.5 LBS / 2.04 Kg

904-696-0010
E-mail: sales@buffersusa.com
1105-34 11/15/24
