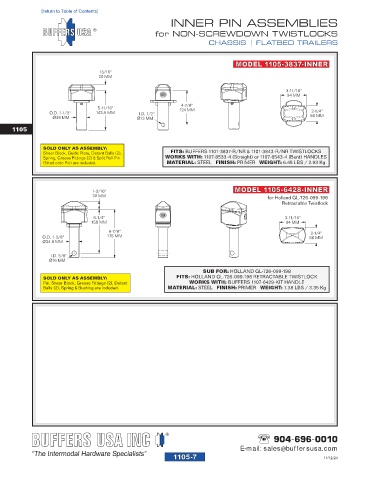

INNER PIN ASSEMBLIES
for NON-SCREWDOWN TWISTLOCKS
CHASSIS | FLATBED TRAILERS

MODEL 1105-2023-INNER
1" for Blair 151/2 twistlock
25.3 MM

3-11/16"
94 MM
5"
127 MM 2-1/4"
I.D. 17/32" 6-1/8" 56 MM
Ø13.5 MM 155 MM
1105
O.D. 1-1/2"
Ø38 MM
SUB FOR: BLAIR 1090/1000, PENZ 15-147 (Pin only)
SOLD ONLY AS ASSEMBLY: FITS: BLAIR 151/2 TWISTLOCK
Shear Block, Detent Balls (2), Spring, Grease WORKS WITH: BUFFERS 1107-1542-A HANDLE & 1107-1542-B COLLAR
Fittings (2) & Split Roll Pin are included. MATERIAL: STEEL FINISH: PRIMER WEIGHT: 7 LBS / 3.18 Kg

MODEL 1105-3133-INNER
1-3/16" Compare against 1105-3533-INNER for Buffers 3133, 3190 & 3423 Twistlocks
30 MM

3-11/16"
94 MM
6-1/16" 5-7/16"
153 MM 138 MM
O.D. 1-1/2" I.D. 1/2" 2-3/16"
Ø38 MM Ø13 MM 56 MM

SOLD ONLY AS ASSEMBLY: FITS: BUFFERS 1101-3133-R/NR, 1101-3190-R/NR & 1101-3423-R/NR TWISTLOCKS
Shear Block, Guide Plate, Detent WORKS WITH: BUFFERS 1107-3133-4 & 1107-8533-4 STRAIGHT HANDLES
Balls (2), Spring, Grease Fittings (2) & or 1107-3423-4 & 1107-8723-4 BENT HANDLES, 1108-3133-18 LATCH
Split Roll Pin (fitted onto Pin) are included. MATERIAL: STEEL FINISH: PRIMER WEIGHT: 6.6 LBS / 2.99 Kg

SPECIAL ORDER ONLY MODEL 1105-3152-INNER-P
SPECIAL ORDER ONLY MODEL 1105-3152-INNER-HDG
3/4"
19 MM for Buffers 3152 Twistlock
3-13/16"
97.5 MM
3-5/16"
4-3/4" 84 MM
120 MM 2-5/16"
O.D. 1-1/2" I.D. 1/2" 59.5 MM
Ø38 MM Ø13.2 MM

SOLD ONLY AS ASSEMBLY: FITS: BUFFERS 1101-3152 TWISTLOCK
Shear Block, Guide Plate, Detent Balls (2), WORKS WITH: BUFFERS 1107-3151-4 HANDLE & 1108-3151-18-PR LATCH
Spring, Grease Fittings (2) & Split Roll Pin MATERIAL: STEEL FINISH: PRIMER or HOT-DIP GALVANIZED
(fitted onto Pin) are included. WEIGHT: 6.3 LBS / 2.9 Kg
