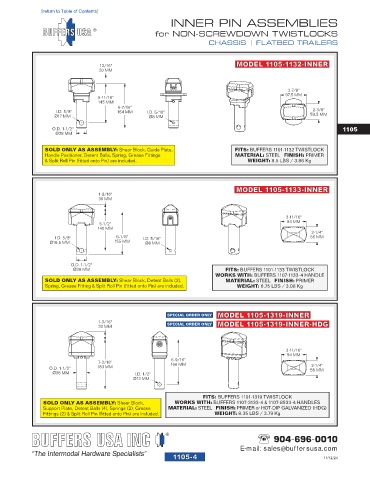

INNER PIN ASSEMBLIES
for NON-SCREWDOWN TWISTLOCKS
CHASSIS | FLATBED TRAILERS

13/16" MODEL 1105-1132-INNER
20 MM

3-7/8"
97.5 MM
5-11/16"
145 MM
6-7/16"
I.D. 5/8" 164 MM I.D. 5/16" 2-3/8"
Ø17 MM Ø8 MM 59.5 MM
O.D. 1-1/2" 1105
Ø38 MM

SOLD ONLY AS ASSEMBLY: Shear Block, Guide Plate, FITS: BUFFERS 1101-1132 TWISTLOCK
Handle Positioner, Detent Balls, Spring, Grease Fittings MATERIAL: STEEL FINISH: PRIMER
& Split Roll Pin (fitted onto Pin) are included. WEIGHT: 8.5 LBS / 3.86 Kg

MODEL 1105-1133-INNER
1-3/16"
30 MM

3-11/16"
94 MM
5-1/2"
140 MM
2-1/4"
I.D. 5/8" 6-1/8" I.D. 5/16" 56 MM
Ø16.5 MM 155 MM Ø8 MM

O.D. 1-1/2"
Ø38 MM FITS: BUFFERS 1101-1133 TWISTLOCK
WORKS WITH: BUFFERS 1107-1133-4 HANDLE
SOLD ONLY AS ASSEMBLY: Shear Block, Detent Balls (2), MATERIAL: STEEL FINISH: PRIMER
Spring, Grease Fitting & Split Roll Pin (fitted onto Pin) are included. WEIGHT: 6.75 LBS / 3.06 Kg

SPECIAL ORDER ONLY MODEL 1105-1319-INNER
1-3/16" SPECIAL ORDER ONLY MODEL 1105-1319-INNER-HDG
30 MM

3-11/16"
94 MM
6-9/16"
7-3/16" 166 MM
2-1/4"
O.D. 1-1/2" 183 MM 56 MM
Ø38 MM I.D. 1/2"
Ø13 MM
FITS: BUFFERS 1101-1319 TWISTLOCK
SOLD ONLY AS ASSEMBLY: Shear Block, WORKS WITH: BUFFERS 1107-3133-4 & 1107-8533-4 HANDLES
Support Plate, Detent Balls (4), Springs (2), Grease MATERIAL: STEEL FINISH: PRIMER or HOT-DIP GALVANIZED (HDG)
Fittings (2) & Split Roll Pin (fitted onto Pin) are included. WEIGHT: 8.35 LBS / 3.79 Kg
