PINLOCKS

CHASSIS

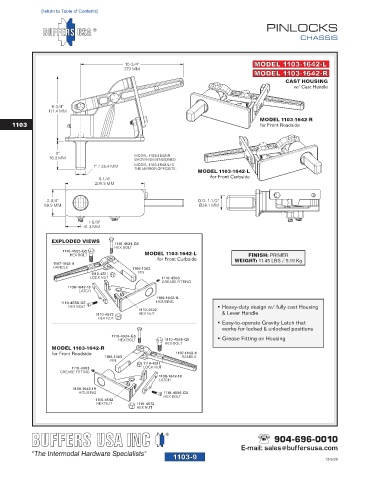

10-3/4" MODEL 1103-1642-L
273 MM
MODEL 1103-1642-R
CAST HOUSING
w/ Cast Handle

6-3/4"
171.4 MM
MODEL 1103-1642-R
1103 for Front Roadside

3"
76.2 MM MODEL 1103-1642-R
SHOWN DIMENSIONED.
1" / 25.4 MM MODEL 1103-1642-L IS
THE MIRROR OPPOSITE.
MODEL 1103-1642-L
for Front Curbside
8-1/4"
209.5 MM
2-3/4" O.D. 1-1/2"
69.9 MM Ø38.1 MM

1-5/8"
41.3 MM

EXPLODED VIEWS 1110-4524-G5
HEX BOLT
1110-4555-G5
HEX BOLT MODEL 1103-1642-L FINISH: PRIMER
for Front Curbside WEIGHT: 11.45 LBS / 5.19 Kg
1107-1642-4
HANDLE 1106-1363
1110-4511 PIN
LOCK NUT 1110-4503
GREASE FITTING
1108-1642-18
LATCH
1109-1642-1L
1110-4556-G5 HOUSING .
HEX BOLT Heavy-duty design w/ fully cast Housing
1110-4542
1110-4572 HEX NUT . & Lever Handle
HEX NUT Easy-to-operate Gravity Latch that
. works for locked & unlocked positions
1110-4524-G5 Grease Fitting on Housing
HEX BOLT 1110-4555-G5
HEX BOLT
MODEL 1103-1642-R
for Front Roadside 1107-1642-4
1106-1363 HANDLE
PIN
1110-4511
1110-4503 LOCK NUT
GREASE FITTING
1108-1642-18
LATCH
1109-1642-1R
HOUSING 1110-4556-G5
HEX BOLT
1110-4542
HEX NUT 1110-4572
HEX NUT
