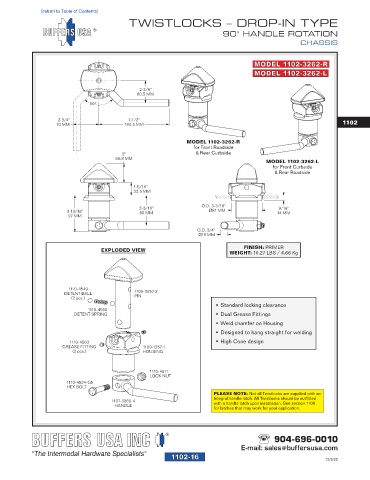

TWISTLOCKS – DROP-IN TYPE
90° HANDLE ROTATION
CHASSIS

MODEL 1102-3261-R
MODEL 1102-3261-L

2-3/8"
60.5 MM
90º
2-3/4" 7-1/2"
70 MM 190.5 MM 1102

MODEL 1102-3261-R MODEL 1102-3261-L
1-3/16" for Front Roadside for Front Curbside
30 MM & Rear Curbside & Rear Roadside

1-5/16"
33.5 MM

3-3/16" O.D. 3-3/16" 9/16"
3-13/16" 80 MM Ø81 MM
97 MM 14 MM
O.D. 3/4"
Ø19 MM
MODEL 1102-3261-R SHOWN DIMENSIONED
MODEL 1102-3261-L IS MIRROR OPPOSITE

FINISH: WELDABLE PRIMER
EXPLODED VIEW WEIGHT: 9 LBS / 4.08 Kg

1110-4549
DETENT BALL 1105-1257-2
(2 pcs.) PIN

1110-4550 .
DETENT SPRING . Standard locking clearance
. Dual Grease Fittings
. Weld chamfer on Housing

1110-4503 Designed to hang straight for welding
GREASE FITTING 1109-1257-1
(2 pcs.) HOUSING

1110-4511
LOCK NUT
1110-4524-G5
HEX BOLT
PLEASE NOTE: Not all Twistlocks are supplied with an
integral handle latch. All Twistlocks should be outfitted
1107-3260-4
HANDLE with a handle latch upon installation. See section 1108
for latches that may work for your application.
