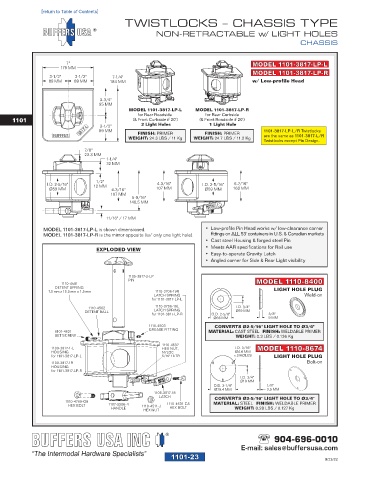

Page 98 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1101-22
[return to Table of Contents]
TWISTLOCKS – CHASSIS TYPE
NON-RETRACTABLE w/ LIGHT HOLES
CHASSIS

7" MODEL 1101-3817-L
178 MM
3-1/2" 3-1/2" 7-1/4" MODEL 1101-3817-R
89 MM 89 MM 184 MM

3-3/4"
95 MM
MODEL 1101-3817-L MODEL 1101-3817-R
for Rear Roadside for Rear Curbside
1101 (& Front Curbside if 20') (& Front Roadside if 20')
3-1/2" 2 Light Holes 1 Light Hole
89 MM
FINISH: PRIMER FINISH: PRIMER
WEIGHT: 24.7 LBS / 11.2 Kg WEIGHT: 25.1 LBS / 11.4 Kg
1-3/16"
30 MM
1-1/4"
32 MM

1/2"
I.D. 2-5/16" 12 MM 4-3/16" I.D. 2-5/16"
Ø59 MM 4-3/16" 107 MM Ø59 MM
107 MM 6-7/16"
5-9/16" 163 MM
140.5 MM
O.D. 11/16" / Ø17 MM
MODEL 1101-3817-L is shown dimensioned.
MODEL 1101-3817-R is the mirror opposite (w/ only one light hole). • Cast steel Housing & forged steel Pin
• Meets AAR specifications for Rail use
EXPLODED VIEW • Easy-to-operate Gravity Latch
• Angled corner for Side & Rear Light visibility

1105-3817-2
PIN
MODEL 1110-8400
LIGHT HOLE PLUG
Weld-on
I.D. 3/4"
Ø19 MM
O.D. 2-5/8" 3/8"
1110-4562 DETENT BALL Ø66 MM 9 MM
1110-4503
1110-4581 DETENT SPRING GREASE FITTING
7.5 mm x 15.5 mm x 1.5 mm CONVERTS Ø2-5/16" LIGHT HOLE TO Ø3/4"
MATERIAL: CAST STEEL FINISH: WELDABLE PRIMER
6101-4621 1110-3706-19R WEIGHT: 0.3 LBS / 0.136 Kg
SET SCREW LATCH SPRING
for 1101-3817-L
I.D. 3/16" MODEL 1110-8674
1109-3817-1-L 1110-3706-19L Ø4.8 MM
HOUSING LATCH SPRING x 3 HOLES LIGHT HOLE PLUG
for 1101-3817-L for 1101-3817-R
Bolt-on
1109-3817-1R 1108-3817-18
HOUSING LATCH
for 1101-3817-R
I.D. 3/4"
Ø19 MM
1110-4631-G5 O.D. 3-1/8" 1/8"
HEX BOLT Ø79.4 MM 3.5 MM
1110-4632 HEX NUT
NYLOC 5/16"-18 TPI CONVERTS Ø2-5/16" LIGHT HOLE TO Ø3/4"
1110-4769-G8 1107-3206-4 1110-4511-J MATERIAL: STEEL FINISH: WELDABLE PRIMER
HEX BOLT HANDLE HEX NUT WEIGHT: 0.28 LBS / 0.127 Kg
904-696-0010
E-mail: sales@buffersusa.com
1101-22 9/23/22
