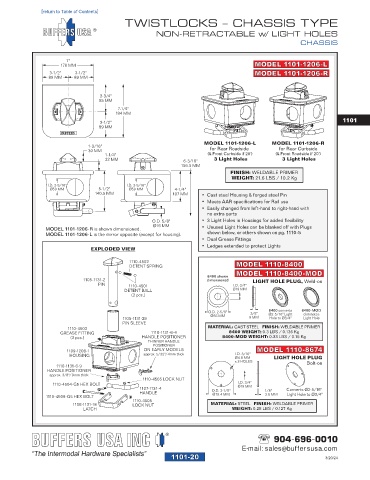

TWISTLOCKS – CHASSIS TYPE
NON-RETRACTABLE w/ LIGHT HOLES
CHASSIS

7" MODEL 1101-1131-L
178 MM
3-1/2" 3-1/2" MODEL 1101-1131-R
89 MM 89 MM

3-3/4"
95 MM
7-1/4"
184 MM
1101
3-1/2"
89 MM

1-3/16"
30 MM MODEL 1101-1131-L MODEL 1101-1131-R
1-1/4" for Rear Roadside for Rear Curbside
32 MM (& Front Curbside if 20') (& Front Roadside if 20')
1 Light Hole 1 Light Hole

I.D. 2-5/16" 4-1/4"
Ø59 MM 5-1/2" 107 MM
140.5 MM FINISH: WELDABLE PRIMER
6-3/16" WEIGHT: 22.9 LBS / 10.4 Kg
156.5 MM

O.D. 5/8"
MODEL 1101-1131-L is shown dimensioned. Ø16 MM
MODEL 1101-1131-R is the mirror opposite.
• Cast steel Housing & forged steel Pin
• Meets AAR specifications for Rail use
EXPLODED VIEW
• Dual Grease Fittings
1110-4502 • Ledge extended to protect Light
DETENT SPRING

1105-1131-2
PIN 1110-4501 MODEL 1110-8400
DETENT BALL
(2 pcs.) LIGHT HOLE PLUG
Weld-on
I.D. 3/4"
Ø19 MM
1105-1131-29 O.D. 2-5/8" 3/8"
9 MM
Ø66 MM
PIN SLEEVE
1110-4503 CONVERTS Ø2-5/16" LIGHT HOLE TO Ø3/4"
GREASE FITTINGS 1110-1131-6-4 MATERIAL: CAST STEEL FINISH: WELDABLE PRIMER
(2 pcs.) HANDLE POSITIONER WEIGHT: 0.3 LBS / 0.136 Kg
THINNER HANDLE
1109-1131-1 POSITIONER I.D. 3/16" MODEL 1110-8674
HOUSING ON EARLY MODELS Ø4.8 MM
approx. 5/32"/4mm thick x 3 HOLES LIGHT HOLE PLUG
1110-1131-6-9 Bolt-on
HANDLE POSITIONER
approx. 3/8"/9mm thick
1110-4505 LOCK NUT
1110-4504-G5 I.D. 3/4"
HEX BOLT Ø19 MM
1110-4508 O.D. 3-1/8" 1/8"
3.5 MM
Ø79.4 MM
HEX BOLT 1107-1131-4
HANDLE
CONVERTS Ø2-5/16" LIGHT HOLE TO Ø3/4"
1108-1131-18 1110-4505 MATERIAL: STEEL FINISH: WELDABLE PRIMER
LATCH LOCK NUT WEIGHT: 0.28 LBS / 0.127 Kg
904-696-0010
