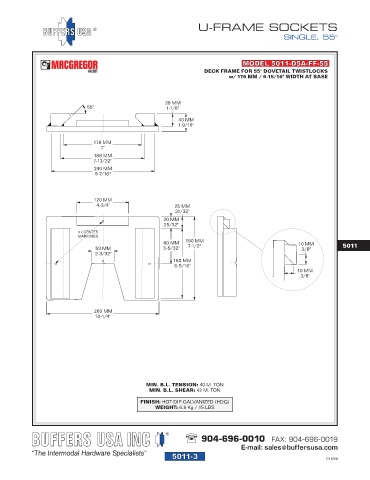

U-FRAME SOCKETS
®
STANDARD TYPE, 45° & 55°

5011-D5B-203
5011-D5B-258
DOUBLE, TRANSVERSAL

X
H

B
L
5011-D5A-FF
SINGLE
H

L
B 5011

TENSION SHEAR
BREAKING BREAKING DIMENSIONS
LOAD LOAD
MODEL (M. TON) (M. TON) X L B H WEIGHT
5011-D5A-FF-45 42 –– 170 MM 260 MM 40 MM 6.2 Kg
5011-D5A-FF-55 40 6-11/16" 10-1/4" 1-9/16" 13.7 LBS
5011-D5B-203-45 42 203 MM 170 MM 463 MM 40 MM 10.2 Kg
5011-D5B-203-55 40 8" 6-11/16" 18-7/32" 1-9/16" 22.5 LBS
5011-D5B-258-45 42 258 MM 170 MM 518 MM 40 MM 13.1 Kg
5011-D5B-258-55 40 10-5/32" 6-11/16" 20-3/8" 1-9/16" 28.9 LBS

USE WITH: TWISTLOCK MODELS 5005-T4, 5005-T4B, 5005-T5-1 & 5005-T5-2
MATERIAL: STEEL, WELDED
FINISH: HOT-DIP GALVANIZED (HDG)
CLASS APPROVED

®
