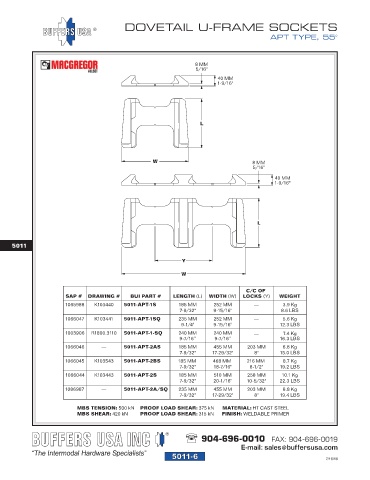

DOVETAIL U-FRAME SOCKETS
®
APT TYPE, 55°

8 MM
5/16"
40 MM
1-9/16"

L

W 8 MM
5/16"
40 MM
1-9/16"

L

5011

Y

W

C/C OF
SAP # DRAWING # BUI PART # LENGTH (L) WIDTH (W) LOCKS (Y) WEIGHT
1065988 K103440 5011-APT-1S 185 MM 252 MM –– 3.9 Kg
7-9/32" 9-15/16" 8.6 LBS
1066047 K103441 5011-APT-1SQ 235 MM 252 MM –– 5.6 Kg
9-1/4" 9-15/16" 12.3 LBS
1003906 R1800.3110 5011-APT-1-SQ 240 MM 240 MM –– 7.4 Kg
9-7/16” 9-7/16” 16.3 LBS
1066046 –– 5011-APT-2AS 185 MM 455 MM 203 MM 6.8 Kg
7-9/32" 17-29/32" 8" 15.0 LBS
1066045 K103543 5011-APT-2BS 185 MM 468 MM 216 MM 8.7 Kg
7-9/32" 18-7/16" 8-1/2" 19.2 LBS
1066044 K103443 5011-APT-2S 185 MM 510 MM 258 MM 10.1 Kg
7-9/32" 20-1/16" 10-5/32" 22.3 LBS
1086987 –– 5011-APT-2A/SQ 235 MM 455 MM 203 MM 8.8 Kg
7-9/32" 17-29/32" 8" 19.4 LBS

MBS TENSION: 500 kN PROOF LOAD SHEAR: 375 kN MATERIAL: HT CAST STEEL
MBS SHEAR: 420 kN PROOF LOAD SHEAR: 315 kN FINISH: WELDABLE PRIMER

®
