5011-04

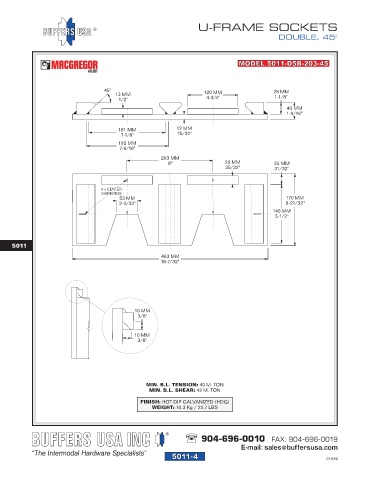

U-FRAME SOCKETS
®
DOUBLE, 45°
MODEL 5011-D5B-203-45
45° 120 MM 28 MM
13 MM 1-1/8"
1/2" 4-3/4"
40 MM
1-9/16"
181 MM 12 MM
7-1/8" 15/32"
192 MM
7-9/16"
203 MM
8" 20 MM 25 MM
25/32" 31/32"
6 x CENTER
MARKINGS
53 MM 170 MM
2-3/32" 6-21/32"
140 MM
5-1/2"
5011
463 MM
18-7/32"
10 MM
3/8"
10 MM
3/8"
MIN. B.L. TENSION: 40 M. TON
MIN. B.L. SHEAR: 42 M. TON
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 10.3 Kg / 22.7 LBS
®
