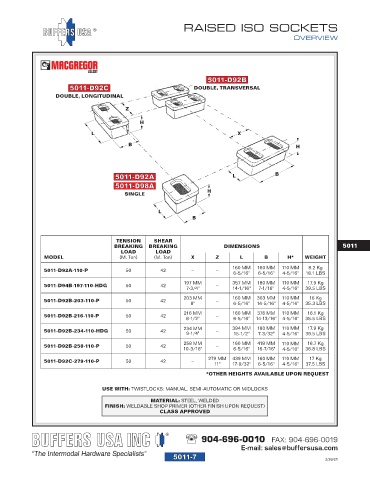

RAISED ISO SOCKETS

OVERVIEW

5011-D92B
5011-D92C DOUBLE, TRANSVERSAL
DOUBLE, LONGITUDINAL

Z

H
L X
B H

5011-D92A L B
5011-D98A
SINGLE H

L
B

TENSION SHEAR
BREAKING BREAKING DIMENSIONS 5011
LOAD LOAD
MODEL (M. Ton) (M. Ton) X Z L B H* WEIGHT

160 MM 160 MM 110 MM 8.2 Kg
5011-D92A-110-P 50 42 – –
6-5/16" 6-5/16" 4-5/16" 18.1 LBS
197 MM 357 MM 180 MM 110 MM 17.9 Kg
5011-D94B-197-110-HDG 50 42 –
7-3/4" 14-1/16" 7-1/16" 4-5/16" 39.5 LBS
203 MM 160 MM 363 MM 110 MM 16 Kg
5011-D92B-203-110-P 50 42 –
8" 6-5/16" 14-5/16" 4-5/16" 35.3 LBS
216 MM 160 MM 376 MM 110 MM 16.1 Kg
5011-D92B-216-110-P 50 42 –
8-1/2" 6-5/16" 14-13/16" 4-5/16" 35.5 LBS
17.9 Kg
5011-D92B-234-110-HDG 50 42 234 MM – 394 MM 180 MM 110 MM 39.5 LBS
9-1/4"
7-3/32"
15-1/2"
4-5/16"
258 MM 160 MM 418 MM 110 MM 16.7 Kg
5011-D92B-258-110-P 50 42 10-3/16" – 6-5/16" 16-7/16" 4-5/16" 36.8 LBS
279 MM 439 MM 160 MM 110 MM 17 Kg
5011-D92C-279-110-P 50 42 – 11" 17-9/32" 6-5/16" 4-5/16" 37.5 LBS
*OTHER HEIGHTS AVAILABLE UPON REQUEST

USE WITH: TWISTLOCKS: MANUAL, SEMI-AUTOMATIC OR MIDLOCKS
MATERIAL: STEEL, WELDED
FINISH: WELDABLE SHOP PRIMER (OTHER FINISH UPON REQUEST)
CLASS APPROVED
