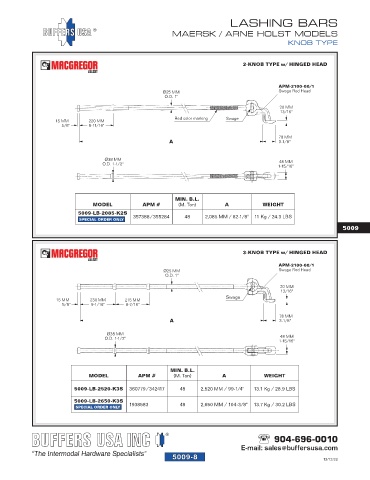

LASHING BARS
MAERSK / ARNE HOLST MODELS
KNOB TYPE

7-KNOB TYPE w/ HINGED HEAD

115 MM 115 MM 100 MM
4-1/2" 4-1/2" 3-15/16"
Ø38 MM
O.D. 1-1/2" A

100 MM
15/16"
25 MM
1" 115 MM 115 MM 115 MM
4-1/2" 4-1/2" 4-1/2"
79 MM
B
3-1/8"

2 3 4 1
48 MM
1-7/8"

5009

MIN. B.L.
MODEL APM # (M. Ton) A B WEIGHT
5008-LB-2225-K7 312574 48 Ø25 MM / O.D. 1" 2,225 MM / 87-5/8" 12.2 Kg / 28.9 LBS
5008-LB-2625-K7 312573 48 Ø25 MM / O.D. 1" 2,625 MM / 103-5/16" 13.8 Kg / 30.4 LBS
SPECIAL ORDER ONLY

ITEM QTY MODEL APM # DESCRIPTION WEIGHT
1 1 5008-APM-2100-00/1 308142 Head for Lashing Rod, HDG 2.13 Kg / 4.7 LBS
2 1 5008-APM-2100-00/5 308144 Pin for Head & Dbl. Hook Jaw 0.25 Kg / 0.55 LBS
3 1 5008-APM-2100-00/6 308145/1 Spring Pin*, 6 x 28 MM, SS 0.07 Kg / 0.15 LBS
4 1 5008-APM-2100-00/7 308145/2 Spring Pin*, 3.5 x 28 MM, SS 0.02 Kg / 0.05 LBS
ALSO AVAILABLE: 5008-APM-2100-00/6-7 308145 Spring Pin* Kit (3.5 & 6 MM) 0.09 Kg / 0.2 LBS
*NOTE: The 3.5 MM Spring Pin fits inside the 6 MM Spring Pin.

MATERIAL: STEEL
FINISH: HOT-DIP GALVANIZED (HDG)
