5006-21

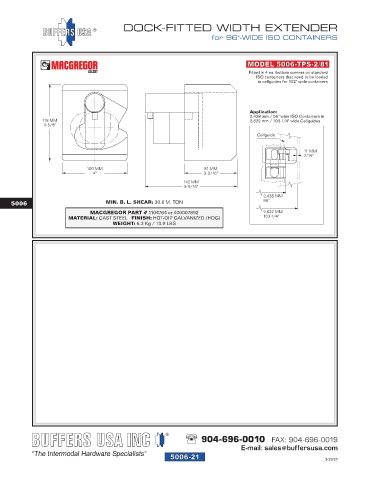

DOCK-FITTED WIDTH EXTENDER

for 96"-WIDE ISO CONTAINERS

MODEL 5006-TPS-2/81
Fitted in 4 ea. bottom corners on standard
ISO containers that need to be loaded
in cellguides for 102" wide containers

Application:
2,438 mm / 96" wide ISO Containers in
118 MM 2,622 mm / 103-1/4" wide Cellguides
4-5/8"
Cellguide

11 MM
7/16"
100 MM 81 MM
4" 3-3/16"
142 MM
5-9/16"
2,438 MM
5006 MIN. B. L. SHEAR: 30.6 M. TON 96"
MACGREGOR PART # 1104764 or 400007892 2,622 MM
MATERIAL: CAST STEEL FINISH: HOT-DIP GALVANIZED (HDG) 103-1/4"
WEIGHT: 6.3 Kg / 13.9 LBS
