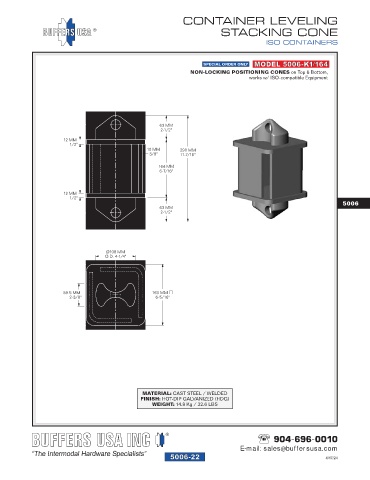

5006-22
CONTAINER LEVELING
STACKING CONE
ISO CONTAINERS
SPECIAL ORDER ONLY MODEL 5006-K1/164
NON-LOCKING POSITIONING CONES on Top & Bottom,
works w/ ISO-compatible Equipment
63 MM
2-1/2"
12 MM
1/2"
10 MM 290 MM
3/8" 11-7/16"
164 MM
6-7/16"
12 MM
1/2"
5006
63 MM
2-1/2"
Ø108 MM
O.D. 4-1/4"
59.5 MM 160 MM
2-3/8" 6-5/16"
MATERIAL: CAST STEEL / WELDED
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 14.8 Kg / 32.6 LBS
904-696-0010
E-mail: sales@buffersusa.com
5006-22 4/17/24
