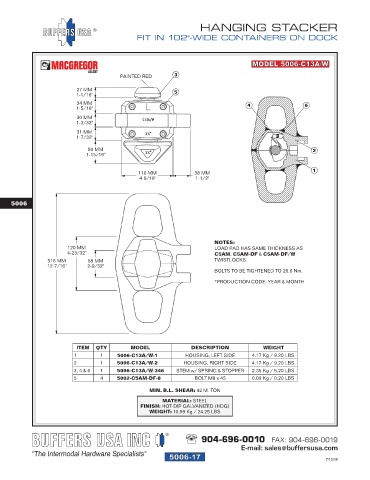

HANGING STACKER
®
FIT IN 102"-WIDE CONTAINERS ON DOCK

MODEL 5006-C13A/W

PAINTED RED 3

27 MM
1-1/16" 5
34 MM 4 6
1-5/16"
30 MM
1-3/32"
31 MM
1-7/32"
50 MM 2
1-15/16"

116 MM 38 MM 1
4-9/16" 1-1/2"

5006

NOTES:
120 MM LOAD PAD HAS SAME THICKNESS AS
4-23/32" C5AM, C5AM-DF & C5AM-DF/W
316 MM 58 MM TWISTLOCKS.
12-7/16" 2-9/32"
BOLTS TO BE TIGHTENED TO 26.6 Nm.

*PRODUCTION CODE: YEAR & MONTH

ITEM QTY MODEL DESCRIPTION WEIGHT
1 1 5006-C13A/W-1 HOUSING, LEFT SIDE 4.17 Kg / 9.20 LBS
2 1 5006-C13A/W-2 HOUSING, RIGHT SIDE 4.17 Kg / 9.20 LBS
3, 4 & 6 1 5006-C13A/W-346 STEM w/ SPRING & STOPPER 2.35 Kg / 5.20 LBS
5 4 5002-C5AM-DF-8 BOLT M8 x 45 0.09 Kg / 0.20 LBS

MIN. B.L. SHEAR: 42 M. TON
MATERIAL: STEEL
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 10.99 Kg / 24.25 LBS

®
