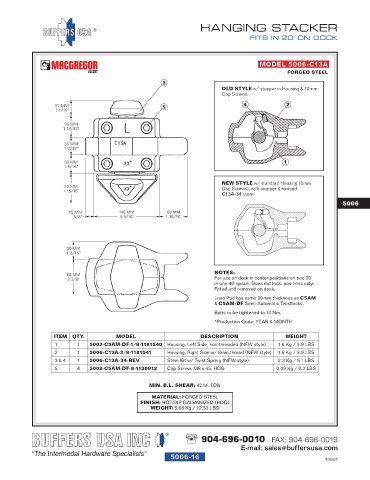

HANGING STACKER

FITS IN 20' ON DOCK

MODEL 5006-C13A
FORGED STEEL
3
OLD STYLE w/ stopper in Housing & 10mm
Cap Screws:
27 MM 5 4 2
1-1/16"

36 MM
1-13/32"

30 MM
1-3/32"

33 MM 1
1-5/16"

NEW STYLE w/ standard Housing (8mm
50 MM Cap Screws), w/o stopper & revised
1-15/16"
C13A-34 stem:
5006
15 MM 116 MM 50 MM
5/8" 4-9/16" 1-15/16"

30 MM
1-3/16"

NOTES:
60 MM
2-3/8" For use on dock in center positions on two 20'
in one 40' space. Does not lock; positions only.
Fitted and removed on dock.
Load Pad has same 30mm thickness as C5AM
& C5AM-DF Semi-Automatic Twistlocks.
Bolts to be tightened to 74 Nm.
*Production Code: YEAR & MONTH

ITEM QTY. MODEL DESCRIPTION WEIGHT
1 1 5002-C5AM-DF-1/8-1181540 Housing, Left Side, non-threaded (NEW style) 1.8 Kg / 3.9 LBS
2 1 5006-C13A-2/8-1181541 Housing, Right Side w/ 8mm thread (NEW style) 1.8 Kg / 3.9 LBS
3 & 4 1 5006-C13A-34-REV Stem Kit w/ Twist Spring (NEW style) 2.3 Kg / 5.1 LBS
5 4 5002-C5AM-DF-8-1120912 Cap Screw, M8 x 45, HDG 0.09 Kg / 0.2 LBS

MIN. B.L. SHEAR: 42 M. TON
MATERIAL: FORGED STEEL
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 5.68 Kg / 12.52 LBS
