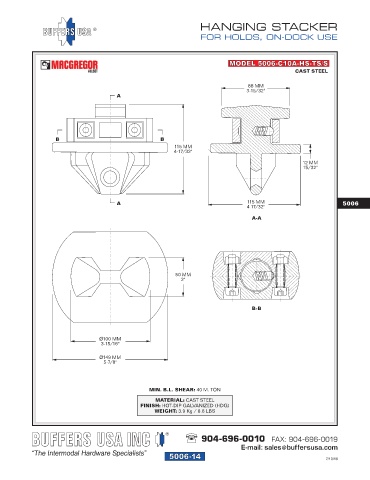

HANGING STACKER
®
ON-DOCK USE, FOR 20' IN HOLDS

MODEL 5006-C16A
FORGED
3 APM #332751

19 MM 4
3/4"

31.5 MM
1-1/4"
LMMYY*
12 MM
1/2"
41.5 MM
1-5/8"

45 MM APM
1-3/4" MMYY*

110 MM
4-5/16" 5006

2
130 MM
5-1/8"
NOTES:
BOLTS TO BE TIGHTENED TO 74 Nm.
60 MM *PRODUCTION CODE: YEAR & MONTH
2-3/8"

1

140 MM
5-1/2"

ITEM QTY MODEL APM # DESCRIPTION WEIGHT
1 1 5006-C16A-1 - HOUSING, LEFT SIDE 1.11 Kg / 2.45 LBS
2 1 5006-C16A-2 - HOUSING, RIGHT SIDE 1.18 Kg / 2.60 LBS
3 1 5006-C16A-3 - SHAFT WITH TWIST SPRING 1.60 Kg / 3.55 LBS
4 4 5006-C5AM-DF-8 334177 CAP SCREW M8 x 45 0.02 Kg / 0.05 LBS

MIN. B.L. SHEAR: 42 M. TON
MATERIAL: STEEL
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 4.2 Kg / 9.25 LBS

®
