P. 43

1205-05
               [return to Table of Contents]

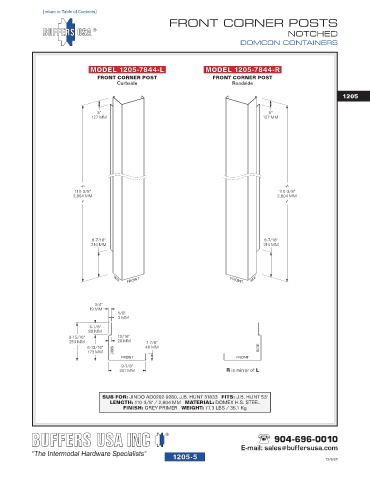

                                                         FRONT CORNER POSTS
                                                                                                NOTCHED
                                                                                 DOMCON CONTAINERS



                               MODEL 1205-7844-L                     MODEL 1205-7844-R
                                 FRONT CORNER POST                     FRONT CORNER POST
                                        Curbside                              Roadside

                                                                                                                  1205


                                 5"                                                       5"
                               127 MM                                                   127 MM













                          110-3/8"                                                           110-3/8"
                         2,804 MM                                                            2,804 MM







                               8-7/16"                                                  8-7/16"
                               214 MM                                                   214 MM





                                           FRONT                             FRONT  SIDE
                                       SIDE


                                3/4"
                               19 MM
                                        1/8"
                                        3 MM
                               3-1/8"
                              80 MM
                        9-15/16"        13/16"
                        253 MM          20 MM    1-7/8"
                              6-13/16"           48 MM                                 SIDE
                              173 MM  SIDE
                                         FRONT                                 FRONT
                                         9-7/8"
                                         251 MM                             R is mirror of L



                                   SUB FOR: JINDO AD0202-9280, J.B. HUNT 31833   FITS: J.B. HUNT 53'
                                     LENGTH: 110-3/8" / 2,804 MM   MATERIAL: DOMEX H.S. STEEL
                                          FINISH: GREY PRIMER   WEIGHT: 77.3 LBS / 35.1 Kg




                                                                                            904-696-0010
                                                                                 E-mail: sales@buffersusa.com
                                                          1205-5                                             12/8/21
