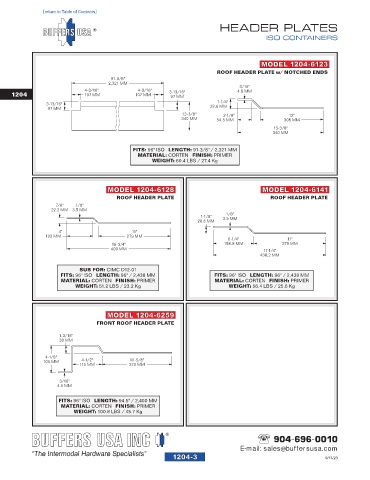

Page 38 - Buffers USA 2024 Container Hardware Catalog FlipBook

1204-03
[return to Table of Contents]
HEADER PLATES

ISO CONTAINERS

MODEL 1204-6123
ROOF HEADER PLATE w/ NOTCHED ENDS
91-3/8"
2,321 MM 3/16"
4-3/16" 4-3/16" 4.8 MM
1204 107 MM 107 MM 3-13/16"
97 MM
1-1/4"
3-13/16"
97 MM 32.6 MM
13-3/8" 2-1/8" 12"
340 MM 54.5 MM 305 MM
13-3/8"
340 MM

FITS: 96" ISO LENGTH: 91-3/8" / 2,321 MM
MATERIAL: CORTEN FINISH: PRIMER
WEIGHT: 60.4 LBS / 27.4 Kg

MODEL 1204-6128 MODEL 1204-6141
ROOF HEADER PLATE ROOF HEADER PLATE
7/8" 1/8"
22.2 MM 3.5 MM
1/8"
1-1/8" 3.5 MM
28.6 MM
4" 11"
102 MM 279 MM
6-1/4" 11"
15-3/4" 158.8 MM 279 MM
400 MM 17-1/4"
438.2 MM

SUB FOR: CIMC D12-01
FITS: 96" ISO LENGTH: 96" / 2,438 MM FITS: 96" ISO LENGTH: 96" / 2,438 MM
MATERIAL: CORTEN FINISH: PRIMER MATERIAL: CORTEN FINISH: PRIMER
WEIGHT: 51.2 LBS / 23.2 Kg WEIGHT: 56.4 LBS / 25.6 Kg

MODEL 1204-6259
FRONT ROOF HEADER PLATE

1-3/16"
30 MM

4-1/8"
105 MM 4-1/2" 10-5/8"
115 MM 270 MM

3/16"
4.5 MM

FITS: 96" ISO LENGTH: 94.5" / 2,400 MM
MATERIAL: CORTEN FINISH: PRIMER
WEIGHT: 100.8 LBS / 45.7 Kg

904-696-0010
E-mail: sales@buffersusa.com
1204-3 9/13/23
