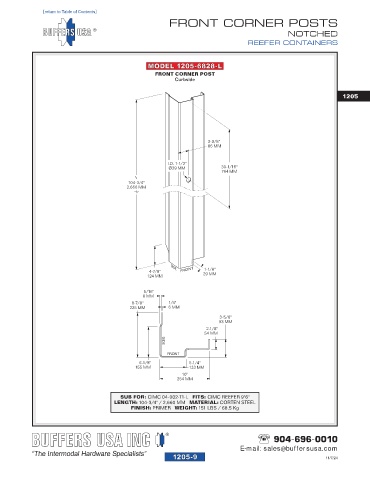

FRONT CORNER POSTS
NOTCHED
REEFER CONTAINERS

MODEL 1205-6828-L
FRONT CORNER POST
Curbside

1205

3-3/8"
86 MM

I.D. 1-1/2"
Ø39 MM 30-1/16"
764 MM
104-3/4"
2,660 MM

4-7/8" SIDE FRONT 1-1/8"
124 MM 29 MM

5/16"
8 MM
8-7/8" 1/4"
225 MM 6 MM
3-5/8"
93 MM
2-1/8"
54 MM

SIDE
FRONT
6-1/8" 5-1/4"
155 MM 133 MM
10"
254 MM

SUB FOR: CIMC 04-002-T1-L FITS: CIMC REEFER 9'6"
LENGTH: 104-3/4" / 2,660 MM MATERIAL: CORTEN STEEL
FINISH: PRIMER WEIGHT: 151 LBS / 68.5 Kg
