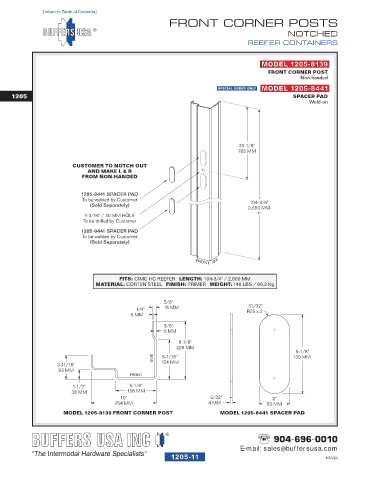

Page 48 - Buffers USA 2024 Container Hardware Catalog FlipBook

1205-11
[return to Table of Contents]
FRONT CORNER POSTS
NOTCHED
REEFER CONTAINERS

MODEL 1205-8139
FRONT CORNER POST
Non-handed
MODEL 1205-8441
SPECIAL ORDER ONLY
1205 SPACER PAD
Weld-on

30-1/8"
765 MM

CUSTOMER TO NOTCH OUT
AND MAKE L & R
FROM NON-HANDED

1205-8441 SPACER PAD
To be welded by Customer
(Sold Separately) 104-3/4"
2,660 MM
1-3/16" / 30 MM HOLE
To be drilled by Customer
1205-8441 SPACER PAD
To be welded by Customer
(Sold Separately)

SIDE
FRONT

FITS: CIMC HC REEFER LENGTH: 104-3/4" / 2,660 MM
MATERIAL: CORTEN STEEL FINISH: PRIMER WEIGHT: 146 LBS / 66.2 Kg

5/8"
31/32"
1/4" 15 MM R25 x 2
6 MM
3/8"
9 MM
8-7/8"
226 MM
5-1/8"
SIDE 6-1/16" 130 MM
3-11/16" 154 MM
93 MM
FRONT
1-1/2" 6-1/4"
38 MM 158 MM
10" 5/32" 2"
254 MM 4 MM 50 MM
MODEL 1205-8139 FRONT CORNER POST MODEL 1205-8441 SPACER PAD

904-696-0010
E-mail: sales@buffersusa.com
1205-11 1/30/24
