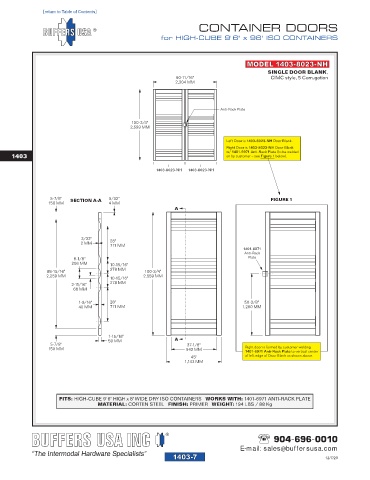

CONTAINER DOORS

for HIGH-CUBE 9' 6" x 96" ISO CONTAINERS

MODEL 1403-8023-NH
SINGLE DOOR BLANK,
90-11/16" CIMC style, 5 Corrugation
2,304 MM

Anti-Rack Plate

100-3/4"
2,599 MM

Left Door is 1403-8023-NH Door Blank.
Right Door is 1403-8023-NH Door Blank
w/ 1401-6971 Anti-Rack Plate (to be welded
1403 on by customer – see Figure 1 below).

1403-8023-NH 1403-8023-NH

5-7/8" SECTION A-A 5/32" FIGURE 1
150 MM 4 MM
A

3/32"
2 MM 28"
711 MM
1401-6971
Anti-Rack
8-1/8" Plate
206 MM 10-15/16"
88-15/16" 278 MM 100-3/4"
2,259 MM 10-15/16" 2,559 MM
2-11/16" 278 MM
68 MM

1-9/16" 28" 50-3/8"
40 MM 711 MM 1,280 MM

1-15/16"
50 MM A
5-7/8" 37-1/8"
150 MM 943 MM Right door is formed by customer welding
1401-6971 Anti-Rack Plate to vertical center
45" of left edge of Door Blank as shown above.
1,143 MM

FITS: HIGH-CUBE 9' 6" HIGH x 8' WIDE DRY ISO CONTAINERS WORKS WITH: 1401-6971 ANTI-RACK PLATE
MATERIAL: CORTEN STEEL FINISH: PRIMER WEIGHT: 194 LBS / 88 Kg
