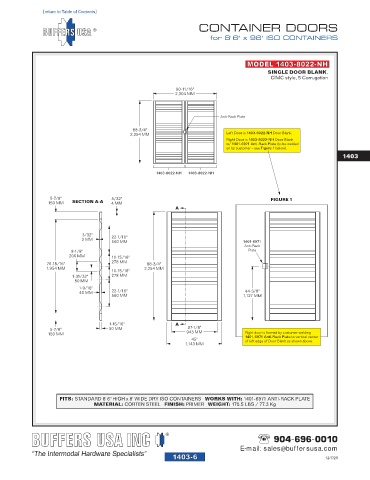

CONTAINER DOORS

for 8' 6" x 96" ISO CONTAINERS

MODEL 1403-8022-NH
SINGLE DOOR BLANK,
CIMC style, 5 Corrugation

90-11/16"
2,304 MM

Anti-Rack Plate
88-3/4"
2,254 MM Left Door is 1403-8022-NH Door Blank.
Right Door is 1403-8022-NH Door Blank
w/ 1401-6971 Anti-Rack Plate (to be welded
on by customer – see Figure 1 below).
1403

1403-8022-NH 1403-8022-NH

5-7/8" 5/32" FIGURE 1
150 MM SECTION A-A 4 MM
A

3/32" 22-1/16"
2 MM
560 MM 1401-6971
Anti-Rack
8-1/8" Plate
206 MM 10-15/16"
76-15/16" 278 MM 88-3/4"
1,954 MM 2,254 MM
10-15/16"
1-31/32" 278 MM
50 MM
1-9/16"
40 MM 22-1/16" 44-3/8"
560 MM 1,127 MM

1-15/16" A
5-7/8" 50 MM 37-1/8"
150 MM 943 MM Right door is formed by customer welding
45" 1401-6971 Anti-Rack Plate to vertical center
of left edge of Door Blank as shown above.
1,143 MM

FITS: STANDARD 8' 6" HIGH x 8' WIDE DRY ISO CONTAINERS WORKS WITH: 1401-6971 ANTI-RACK PLATE
MATERIAL: CORTEN STEEL FINISH: PRIMER WEIGHT: 170.5 LBS / 77.3 Kg
