1401-03
[return to Table of Contents]

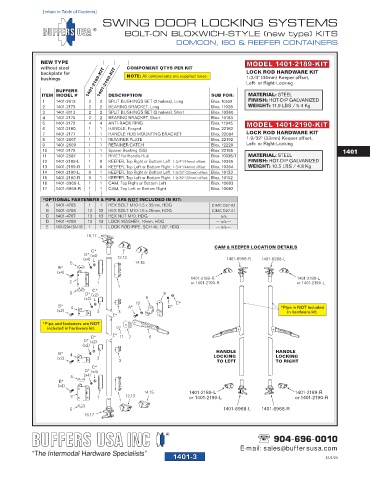

SWING DOOR LOCKING SYSTEMS

BOLT-ON BLOXWICH-STYLE (new type) KITS
DOMCON, ISO & REEFER CONTAINERS

NEW TYPE MODEL 1401-2189-KIT
without steel COMPONENT QTYS PER KIT
backplate for LOCK ROD HARDWARE KIT
bushings 1401-2189-KIT 1401-2190-KIT NOTE: All components are supplied loose. 1-3/4" (44mm) Keeper offset,
Left- or Right-Locking
BUFFERS
ITEM MODEL # DESCRIPTION SUB FOR: MATERIAL: STEEL
1 1401-2613 2 2 SPLIT BUSHINGS SET (2 halves), Long Blox. 10559 FINISH: HOT-DIP GALVANIZED
2 1401-2173 2 2 BEARING BRACKET, Long Blox. 11028 WEIGHT: 11.9 LBS / 5.4 Kg
3 1401-6113 2 2 SPLIT BUSHINGS SET (2 halves), Short Blox. 10560
4 1401-2175 2 2 BEARING BRACKET, Short Blox. 10163
5 1401-2172 4 4 ANTI-RACK RING Blox. 11945 MODEL 1401-2190-KIT
6 1401-2180 1 1 HANDLE, Forged Blox. 22182
7 1401-2177 1 1 HANDLE HUB MOUNTING BRACKET Blox. 22084 LOCK ROD HARDWARE KIT
8 1401-2607 1 1 RETAINER PLATE Blox. 22192 1-9/32" (33mm) Keeper offset,
9 1401-2609 1 1 RETAINER CATCH Blox. 12229 Left- or Right-Locking
10 1401-2179 1 1 Spacer Bushing (SS) Blox. 22185 1401
11 1401-2587 1 1 RIVET for Handle Hub Blox. 10038/1 MATERIAL: STEEL
12 1401-2189-L 1 0 KEEPER, Top Right or Bottom Left 1-3/4" (44mm) offset Blox. 10365 FINISH: HOT-DIP GALVANIZED
13 1401-2189-R 1 0 KEEPER, Top Left or Bottom Right 1-3/4" (44mm) offset Blox. 10364 WEIGHT: 10.5 LBS / 4.8 Kg
14 1401-2190-L 0 1 KEEPER, Top Right or Bottom Left 1-9/32" (33mm) offset Blox. 10153
15 1401-2190-R 0 1 KEEPER, Top Left or Bottom Right 1-9/32" (33mm) offset Blox. 10152
16 1401-6968-L 1 1 CAM, Top Right or Bottom Left Blox. 10083
17 1401-6968-R 1 1 CAM, Top Left or Bottom Right Blox. 10082

*OPTIONAL FASTENERS & PIPE ARE NOT INCLUDED IN KIT:
A 1401-4705 1 1 HEX BOLT M10-1.5 x 35mm, HDG CIMC D27-02
B 1401-4706 12 12 HEX BOLT M10-1.5 x 25mm, HDG CIMC D27-01
C 1401-4707 13 13 HEX NUT M10, HDG — n/a —
D 1401-4708 13 13 LOCK WASHER, 10mm, HDG — n/a —
E 1401-6204-120-1.05 1 1 LOCK ROD PIPE, SCH 40, 120", HDG — n/a —
16,17
CAM & KEEPER LOCATION DETAILS
C*
D* (x4)
(x4) 12,13 1401-6968-R 1401-6968-L
5 14,15
B*
(x4)
1401-2189-R 1401-2189-L
2 1 or 1401-2190-R or 1401-2190-L
1
C*
5 D* (x2) 8
(x2) 9
10 C*
B* 4 A* D* *Pipe is NOT included
(x2) 3 3 in hardware kit.
E*
*Pipe and fasteners are NOT
included in hardware kit.
E*
C* 11 7 6
D* (x2)
(x2)
B* 4 HANDLE HANDLE
(x2) 3 LOCKING LOCKING
3 TO LEFT TO RIGHT
C*
D* (x4)
5 (x4)
B*
(x4)
14,15 1401-2189-L 1401-2189-R
2 1 12,13 or 1401-2190-L or 1401-2190-R
1
5 1401-6968-L 1401-6968-R
16,17

904-696-0010
E-mail: sales@buffersusa.com
1401-3 12/4/24
