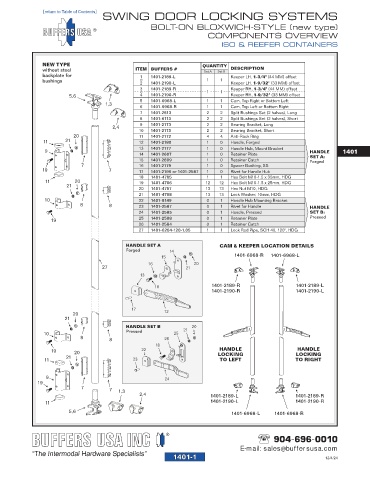

Page 127 - Buffers USA 2024 Container Hardware Catalog FlipBook

1401-01
[return to Table of Contents]
SWING DOOR LOCKING SYSTEMS
BOLT-ON BLOXWICH-STYLE (new type)
COMPONENTS OVERVIEW
ISO & REEFER CONTAINERS

NEW TYPE QUANTITY
without steel ITEM BUFFERS # Set A Set B DESCRIPTION
backplate for 1 1401-2189-L Keeper LH, 1-3/4" (44 MM) offset
bushings OR 2 1401-2190-L 1 1 Keeper LH, 1-9/32" (33 MM) offset
3 1401-2189-R Keeper RH, 1-3/4" (44 MM) offset
OR 1 1
5,6 4 1401-2190-R Keeper RH, 1-9/32" (33 MM) offset
5 1401-6968-L 1 1 Cam, Top Right or Bottom Left
1,3
6 1401-6968-R 1 1 Cam, Top Left or Bottom Right
7 1401-2613 2 2 Split Bushings Set (2 halves), Long
8 1401-6113 2 2 Split Bushings Set (2 halves), Short
9 1401-2173 2 2 Bearing Bracket, Long
2,4
10 1401-2175 2 2 Bearing Bracket, Short
20 11 1401-2172 4 4 Anti-Rack Ring
11 21 12 1401-2180 1 0 Handle, Forged
13 1401-2177 1 0 Handle Hub, Mount Bracket
9 HANDLE 1401
14 1401-2607 1 0 Retainer Plate SET A:
15 1401-2609 1 0 Retainer Catch Forged
7 16 1401-2179 1 0 Spacer Bushing, SS
19 7 17 1401-2196 or 1401-2587 1 0 Rivet for Handle Hub
18 1401-4705 1 1 Hex Bolt M10-1.5 x 35mm, HDG
11 20 19 1401-4706 12 12 Hex Bolt M10-1.5 x 25mm, HDG
21
20 1401-4707 13 13 Hex Nut M10, HDG
21 1401-4708 13 13 Lock Washer, 10mm, HDG
10 22 1401-8149 0 1 Handle Hub Mounting Bracket
8 8 23 1401-2587 0 1 Rivet for Handle HANDLE
24 1401-2585 0 1 Handle, Pressed SET B:
19 25 1401-2588 0 1 Retainer Plate Pressed
26 1401-2584 0 1 Retainer Catch
27 1401-6204-120-1.05 1 1 Lock Rod Pipe, SCH 40, 120", HDG

HANDLE SET A CAM & KEEPER LOCATION DETAILS
Forged 14
15 1401-6968-R 1401-6968-L
16 20
27 21
13

18 1401-2189-R 1401-2189-L
1401-2190-R 1401-2190-L

17
20 12
21
HANDLE SET B 20
Pressed 21
10 25
8 8 26
18
19 20 22 HANDLE HANDLE
21 LOCKING LOCKING
11 23 TO LEFT TO RIGHT

9 24
19
7 7 1,3
2,4 1401-2189-L 1401-2189-R
11 1401-2190-L 1401-2190-R
5,6 1401-6968-L 1401-6968-R

904-696-0010
E-mail: sales@buffersusa.com
1401-1 12/4/24
