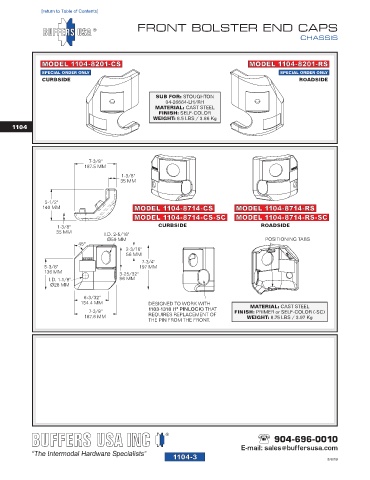

FRONT BOLSTER END CAPS BOLSTER COMPONENTS

CHASSIS CHASSIS

MODEL 1104-8201-CS MODEL 1104-8201-RS MODEL 1104-7165

SPECIAL ORDER ONLY SPECIAL ORDER ONLY FRONT BOLSTER
CURBSIDE ROADSIDE CENTER PLATE
SUB FOR: HYUNDAI 20003965 Hyundai style
MATERIAL: A27 STEEL PLATE
SUB FOR: STOUGHTON FINISH: WELDABLE BLACK PRIMER
04-26664-LH/RH WEIGHT: 15 LBS / 6.8 Kg
MATERIAL: CAST STEEL
FINISH: SELF-COLOR
WEIGHT: 8.5 LBS / 3.86 Kg
1104

35-3/4" / 908 MM
21-7/8" / 810 MM 1-1/8"
I.D. 1-1/16" 4-3/8" I.D. 5/16" 37 MM
Ø27 MM x 3 HOLES 111.5 MM Ø8.5 MM x 4 HOLES
7-3/8"
187.5 MM
1-3/8"
35 MM 4-1/4" 6-7/8"
109 MM 6-5/16" 174 MM
161 MM
3-7/16"
87 MM
5-1/2"
140 MM MODEL 1104-8714-CS MODEL 1104-8714-RS
3-3/4"
2"
MODEL 1104-8714-CS-SC MODEL 1104-8714-RS-SC 95 MM 5 MM
1-3/8" CURBSIDE ROADSIDE 12" / 304 MM
35 MM I.D. 2-5/16"
Ø59 MM POSITIONING TABS
45º
2-3/16"
56 MM
7-3/4"
5-3/8" 197 MM
136 MM 3-25/32"
I.D. 1-1/8" 96 MM
Ø28 MM

6-3/32"
154.4 MM DESIGNED TO WORK WITH MATERIAL: CAST STEEL
7-3/8" 1103-1318 (1" PINLOCK) THAT FINISH: PRIMER or SELF-COLOR (-SC)
187.6 MM REQUIRES REPLACEMENT OF WEIGHT: 8.75 LBS / 3.97 Kg
THE PIN FROM THE FRONT.
