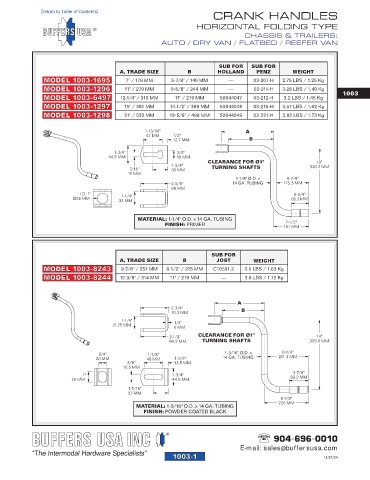

                                                                        CRANK HANDLES
                                                                  HORIZONTAL FOLDING TYPE
                                                                                  CHASSIS & TRAILERS:
                                                      AUTO / DRY VAN / FLATBED / REEFER VAN




                                                                          SUB FOR   SUB FOR
                                         A, TRADE SIZE         B         HOLLAND      PENZ        WEIGHT
               MODEL 1003-1695             7" / 178 MM    5-7/8" / 149 MM    —       03-207-H  2.75 LBS / 1.25 Kg
               MODEL 1003-1296            11" / 279 MM    9-5/8" / 244 MM    —       03-211-H  3.28 LBS / 1.49 Kg  1003
               MODEL 1003-6497           12-1/4" / 310 MM  11" / 279 MM   50644047   03-212-H  3.2 LBS / 1.45 Kg
               MODEL 1003-1297            15" / 381 MM   14-1/2" / 368 MM  50644048  03-215-H  3.57 LBS / 1.62 Kg
               MODEL 1003-1298            21" / 533 MM   19-5/8" / 498 MM  50644049  03-221-H  3.82 LBS / 1.73 Kg

                                               1-27/32"                            A
                                                47 MM   1/2"
                                                        12.7 MM                     B

                                     1-3/4"               3/4"
                                   44.5 MM                19 MM
                                                        1-3/8"        CLEARANCE FOR Ø1"
                                          7/16"         35 MM          TURNING SHAFTS
                                          11 MM
                                                        2-5/8"                 1-1/4" O.D. x             13"
                                                        68 MM                 14 GA. TUBING           330.2 MM

                                       1-1/4"                                                      3-3/4"
                                       32 MM                                                      95.3 MM
                          I.D. 1-1/32"
                          Ø26 MM               MATERIAL: 1-1/4" O.D. x 14 GA. TUBING
                                                                                                7-1/2"
                                                        FINISH: PRIMER                         191 MM
