1101-28
[return to Table of Contents]

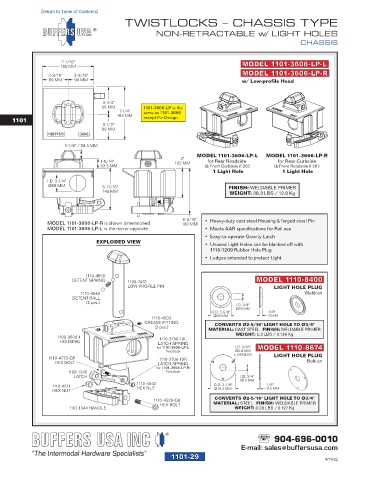

TWISTLOCKS – CHASSIS TYPE
NON-RETRACTABLE w/ LIGHT HOLES
CHASSIS

7-1/16" SPECIAL ORDER ONLY MODEL 1101-3606-L
180 MM
SPECIAL ORDER ONLY MODEL 1101-3606-R
3-9/16" 3-9/16"
90 MM 90 MM w/ High-profile Head

3-3/4"
95 MM 1101-3606 is the same
7-1/4" as 1101-3606-LP
184 MM except Pin Design.
1101
3-1/2"
89 MM

1-15/16"
49.3 MM MODEL 1101-3606-L MODEL 1101-3606-R
4" for Rear Roadside for Rear Curbside
1-5/16" 102 MM
33.5 MM (& Front Curbside if 20') (& Front Roadside if 20')
1 Light Hole 1 Light Hole
I.D. 2-1/4"
Ø58 MM 5-11/16" SUB FOR: SCHULZ F33NS-XX
145 MM FINISH: WELDABLE PRIMER
WEIGHT: 28.3 LBS / 12.8 Kg

6-5/16" • Heavy-duty cast steel Housing & forged steel Pin
MODEL 1101-3606-R is shown dimensioned. 160 MM
MODEL 1101-3606-L is the mirror opposite. • Meets AAR specifications for Rail use
• Easy-to-operate Gravity Latch
EXPLODED VIEW
• Unused Light Holes can be blanked off with
1110-1209 Rubber Hole Plug
• Ledges extended to protect Light

1110-4550 MODEL 1110-8400
DETENT SPRING 1105-1447
PIN LIGHT HOLE PLUG
Weld-on
1110-4549
DETENT BALL
(2 pcs.) I.D. 3/4"
Ø19 MM
O.D. 2-5/8" 3/8"
Ø66 MM 9 MM
1110-4503
GREASE FITTING CONVERTS Ø2-5/16" LIGHT HOLE TO Ø3/4"
(2 pcs.) MATERIAL: CAST STEEL FINISH: WELDABLE PRIMER
WEIGHT: 0.3 LBS / 0.136 Kg
1109-3606-1 1110-3706-19L
HOUSING LATCH SPRING
for 1101-3606-L I.D. 3/16" MODEL 1110-8674
Twistlock Ø4.8 MM
x 3 HOLES LIGHT HOLE PLUG
1110-4773-G5 1110-3706-19R Bolt-on
HEX BOLT LATCH SPRING
for 1101-3606-R
1108-1345 Twistlock
LATCH I.D. 3/4"
Ø19 MM
1110-4542 O.D. 3-1/8" 1/8"
1110-4511 HEX NUT Ø79.4 MM 3.5 MM
HEX NUT
CONVERTS Ø2-5/16" LIGHT HOLE TO Ø3/4"
1110-4529-G8 MATERIAL: STEEL FINISH: WELDABLE PRIMER
HEX BOLT
1107-1344 HANDLE WEIGHT: 0.28 LBS / 0.127 Kg
904-696-0010
E-mail: sales@buffersusa.com
1101-28 9/19/22
