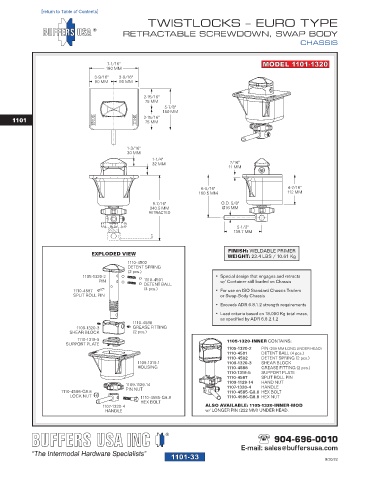

TWISTLOCKS – EURO TYPE
RETRACTABLE, SWAP BODY
CHASSIS

7-1/16" MODEL 1101-1319
180 MM
3-9/16" 3-9/16"
90 MM 90 MM

2-15/16"
75 MM
5-7/8"
150 MM
1101 2-15/16"
75 MM

1-3/16"
30 MM
1-1/4"
32 MM 7/16"
11 MM

5-1/4"
134 MM 4-7/16"
112 MM
O.D. 5/8"
8-7/16" Ø16 MM
214 MM
RETRACTED
5"
127.5 MM

FINISH: WELDABLE PRIMER
EXPLODED VIEW
WEIGHT: 22.3 LBS / 10.1 Kg
1110-4502
DETENT SPRING
(2 pcs.)
1105-1319-2
PIN
1110-4501 • Special design that engages and retracts
DETENT BALL
1110-4587 (4 pcs.) w/ Container still loaded on Chassis
SPLIT ROLL PIN
• For use on ISO Standard Chassis Trailers
or Swap-Body Chassis
• Exceeds ADR 6.8.1.2 strength requirements
1110-4588
1109-1319-3 GREASE FITTING • Load criteria based on 18,000 Kg total mass,
SHEAR BLOCK (2 pcs.) as specified by ADR 6.8.2.1.2
1110-1319-5
SUPPORT PLATE

1109-1319-1-SC 1105-1319-INNER CONTAINS:
HOUSING 1105-1319-2 PIN
1110-4501 DETENT BALL (4 pcs.)
1110-4502 DETENT SPRING (2 pcs.)
1110-4586 1109-1319-3 SHEAR BLOCK
HEX LOCK NUT 1110-4588 GREASE FITTING (2 pcs.)
1110-4584-G8.8 1110-1319-5 SUPPORT PLATE
HEX BOLT 1110-4587 SPLIT ROLL PIN
1107-3133-4
HANDLE ALSO AVAILABLE: 1105-1316-INNER-HDG

904-696-0010
