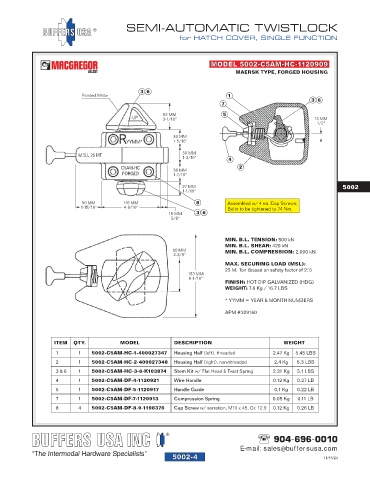

5002-04

SEMI-AUTOMATIC TWISTLOCK

for HATCH COVER, SINGLE FUNCTION

MODEL 5002-C5AM-HC-1120909
MAERSK TYPE, FORGED HOUSING

3 6
Painted White 1
3 6
7
52 MM 5
UP 2-1/16" 13 MM
1/2"

33 MM
RYYMM* 1-5/16"
M.S.L 25 MT 30 MM 4
1-3/16"
C5AM-HC 36 MM 2
FORGED 1-7/16"

27 MM 5002
1-1/16"
50 MM 116 MM 8 Assembled w/ 4 ea. Cap Screws;
1-15/16" 4-9/16" Bolts to be tightened to 74 Nm.
15 MM 3 6
5/8"

MIN. B.L. TENSION: 500 kN
MIN. B.L. SHEAR: 420 kN
60 MM MIN. B.L. COMPRESSION: 2,000 kN
2-3/8"
MAX. SECURING LOAD (MSL):
25 M. Ton (based on safety factor of 2:1)
153 MM
6-1/16"
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 7.6 Kg / 16.7 LBS
* YYMM = YEAR & MONTH NUMBERS

APM #329160

ITEM QTY. MODEL DESCRIPTION WEIGHT
1 1 5002-C5AM-HC-1-400027347 Housing Half (left), threaded 2.47 Kg 5.45 LBS
2 1 5002-C5AM-HC-2-400027348 Housing Half (right), non-threaded 2.4 Kg 5.3 LBS
3 & 6 1 5002-C5AM-HC-3-6-K103874 Stem Kit w/ Flat Head & Twist Spring 2.31 Kg 5.1 LBS
4 1 5002-C5AM-DF-4-1120921 Wire Handle 0.12 Kg 0.27 LB
5 1 5002-C5AM-DF-5-1120917 Handle Guide 0.1 Kg 0.22 LB
7 1 5002-C5AM-DF-7-1120913 Compression Spring 0.05 Kg 0.11 LB
8 4 5002-C5AM-DF-8-9-1198376 Cap Screw w/ serration, M10 x 45, Gr. 12.9 0.12 Kg 0.26 LB

904-696-0010
E-mail: sales@buffersusa.com
5002-4 11/15/24
