5002-01

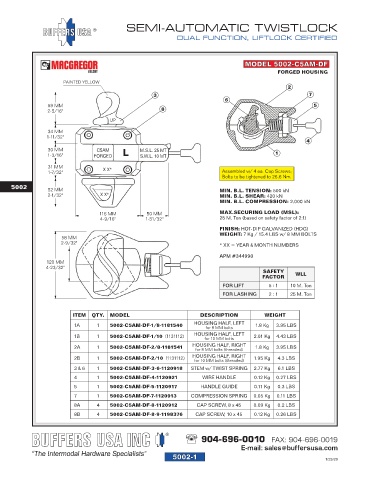

SEMI-AUTOMATIC TWISTLOCK

DUAL FUNCTION, LIFTLOCK CERTIFIED

MODEL 5002-C5AM-DF
FORGED HOUSING
PAINTED YELLOW
2
3 7
6
59 MM 5
2-5/16" 8
UP
34 MM
1-11/32"
4
30 MM C5AM L M.S.L. 25 MT
1-3/16" FORGED S.W.L. 10 MT 1

31 MM
1-7/32" X X* Assembled w/ 4 ea. Cap Screws;
Bolts to be tightened to 26.6 Nm.
5002 52 MM MIN. B.L. TENSION: 500 kN
2-1/32" X X* MIN. B.L. SHEAR: 420 kN
MIN. B.L. COMPRESSION: 2,000 kN

116 MM 50 MM MAX.SECURING LOAD (MSL):
4-9/16" 1-31/32" 25 M. Ton (based on safety factor of 2:1)
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 7 Kg / 15.4 LBS w/ 8 MM BOLTS
58 MM
2-9/32" * XX = YEAR & MONTH NUMBERS
APM #344990
120 MM
4-23/32"
SAFETY WLL
FACTOR
FOR LIFT 5 : 1 10 M. Ton
FOR LASHING 2 : 1 25 M. Ton

ITEM QTY. MODEL DESCRIPTION WEIGHT
1A 1 5002-C5AM-DF-1/8-1181540 HOUSING HALF, LEFT 1.8 Kg 3.95 LBS
for 8 MM bolts
1B 1 5002-C5AM-DF-1/10 (1131112) HOUSING HALF, LEFT 2.01 Kg 4.43 LBS
for 10 MM bolts
2A 1 5002-C5AM-DF-2/8-1181541 HOUSING HALF, RIGHT 1.8 Kg 3.95 LBS
for 8 MM bolts (threaded)
2B 1 5002-C5AM-DF-2/10 (1131112) HOUSING HALF, RIGHT 1.95 Kg 4.3 LBS
for 10 MM bolts (threaded)
3 & 6 1 5002-C5AM-DF-3-6-1120918 STEM w/ TWIST SPRING 2.77 Kg 6.1 LBS
4 1 5002-C5AM-DF-4-1120921 WIRE HANDLE 0.12 Kg 0.27 LBS
5 1 5002-C5AM-DF-5-1120917 HANDLE GUIDE 0.11 Kg 0.3 LBS
7 1 5002-C5AM-DF-7-1120913 COMPRESSION SPRING 0.05 Kg 0.11 LBS
8A 4 5002-C5AM-DF-8-1120912 CAP SCREW, 8 x 45 0.09 Kg 0.2 LBS
8B 4 5002-C5AM-DF-8-9-1198376 CAP SCREW, 10 x 45 0.12 Kg 0.26 LBS

®
