P. 70
5001-02

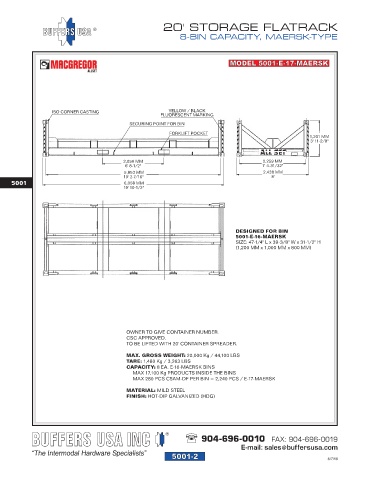

20' STORAGE FLATRACK
®
8-BIN CAPACITY, MAERSK-TYPE
MODEL 5001-E-17-MAERSK
ISO CORNER CASTING YELLOW / BLACK
FLUORESCENT MARKING
SECURING POINT FOR BIN
FORKLIFT POCKET
1,201 MM
3' 11-2/8"
2,050 MM 2,259 MM
6' 8-1/2" 7' 4-31/32"
5,853 MM 2,438 MM
19' 2-7/16" 8'
5001 6,058 MM
19' 10-1/2"
DESIGNED FOR BIN
5001-E-16-MAERSK
SIZE: 47-1/4" L x 39-3/8" W x 31-1/2" H
(1,200 MM x 1,000 MM x 800 MM)
OWNER TO GIVE CONTAINER NUMBER.
CSC APPROVED.
TO BE LIFTED WITH 20' CONTAINER SPREADER.
MAX. GROSS WEIGHT: 20,000 Kg / 44,100 LBS
TARE: 1,480 Kg / 3,263 LBS
CAPACITY: 8 EA. E-16-MAERSK BINS
MAX 17,100 Kg PRODUCTS INSIDE THE BINS
MAX 280 PCS C5AM-DF PER BIN = 2,240 PCS / E-17-MAERSK
MATERIAL: MILD STEEL
FINISH: HOT-DIP GALVANIZED (HDG)
®
